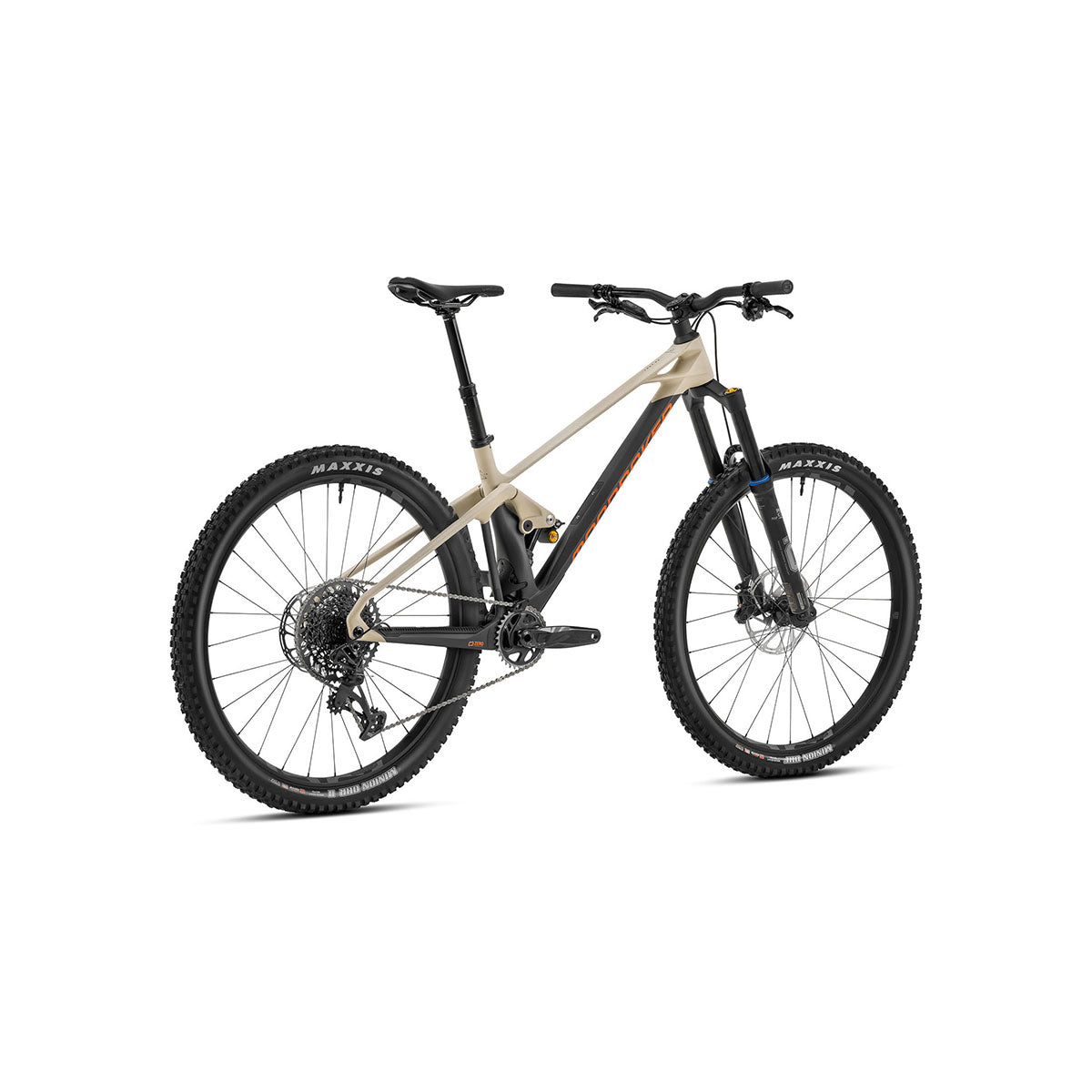

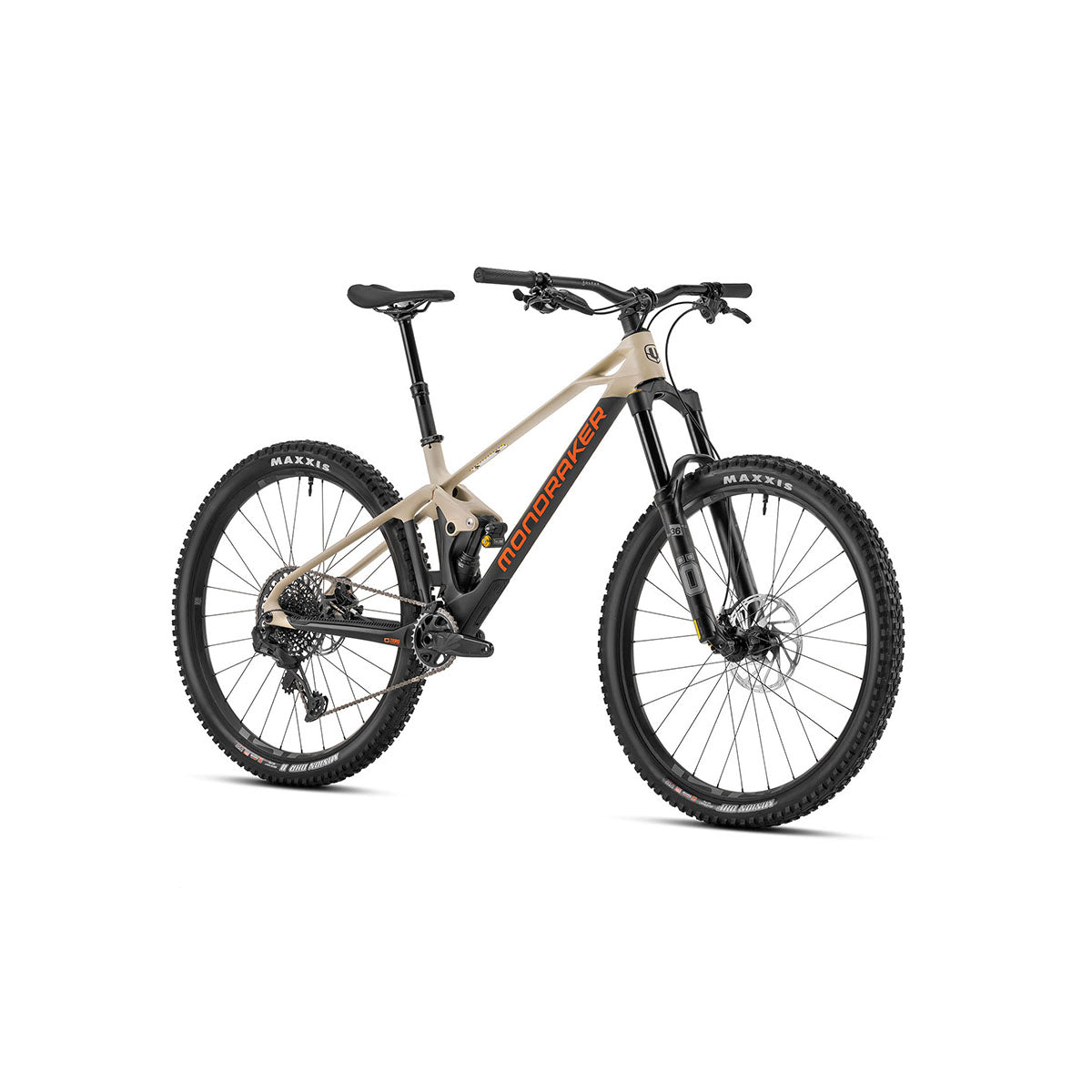

Mondraker - FOXY CARBON RR Bike - Carbon/Gray/Orange (ENDURO/AM)

SKU: MOND-B-Foxy-CarbRR-Carbon23-S

$9,799.00

Shipping calculated at checkout.

Size

S M L XL

Color: Carbon-Gray-Orange

Mondraker - FOXY CARBON RR Bike - Carbon/Gray/Orange (ENDURO/AM)

Product variants

NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Colors: Matte Carbon / Desert Grey / Orange

Experience the Foxy Carbon RR difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts enhanced performance and ultra-modern geometry.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, Foxy Carbon R becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

HHG Internal Cable Routing helps with a minimalistic, clean design. Foxy Carbon R is loaded with features such as shock mudguards, boost rear axle, sealed bearings, custom frame protectors, BSA bottom bracket, and dedicated 1X drivetrain for better traction and momentum.

Foxy Carbon RR 29 sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME	Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry,aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mmBSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealedbearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry Kit (EU Only)
SIZES	S: 380mm / M: 420mm / L: 450mm / XL: 500mm
REAR SHOCK	Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
SHOCK SETTINGS	C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
FORK	Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
HEADSET	Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
STEM	Onoff Sulfur FG 30mm, 6061 forged alloy, 31.8mm barbore
HANDLEBAR	Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS	Onoff Desert, 1lock-on, 135mm
SEATPOST	Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
SADDLE	SDG BEL-AIR 3.0, LPU foam, steel rails
FRONT BRAKE	Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKE	Sram Code R, oversized 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
BRAKE LEVER	Sram Code R, tool-free reach adjust
RIMS	e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
SPOKES	e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
FRONT HUB	e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
REAR HUB	e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
FRONT TIRE	Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
REAR TIRE	Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
CRANKSET	Sram GX Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
RINGS	32T, CNC-machined alloy, X-SYNC 2
BOTTOM BRACKET	Sram DUB BSA, sealed bearings, 73mm
PEDALS	-
CHAIN	Sram NX Eagle, 12s, Powerlock
FRONT DERAILLEUR	-
REAR DERAILLEUR	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS	Sram Trigger GX Eagle, 12s, X-Actuation 1:1
CASSETTE	Sram XG-1275, 10-52T, 12s
MOTOR	-
BATTERY	-
DISPLAY	-
DERAILLEUR HANGER	Sram UDH
OTHERS	*Optional Geometry kit: steering cups: +/- 1°
WEIGHT	14.5 Kg

GEOMETRY

MEASUREMENTS / GEOMETRY

	Size	S	M	L	XL
A	Seat Tube Length	375 mm	415 mm	445 mm	500 mm
B	Top Tube Length	600 mm	620 mm	650 mm	670 mm
C	Bottom Bracket Drop	-30 mm	-30 mm	-30 mm	-30 mm
D	Bottom Bracket Height	345 mm	345 mm	345 mm	345 mm
E	Chainstay Length	445 mm	445 mm	445 mm	445 mm
F	Seat Tube Angle, Actual	70°	70°	70°	70°
G	Seat Tube Angle, Effective	75.5°	75.5°	75.5°	75.5°
H	Head Tube Angle	64.5°	64.5°	64.5°	64.5°
I	Fork Offset	44 mm	44 mm	44 mm	44 mm
J	Wheelbase	1210 mm	1233 mm	1260 mm	1286 mm
K	Head Tube Length	90 mm	100 mm	115 mm	130 mm
L	Reach	445 mm	465 mm	485 mm	505 mm
M	Stack	617 mm	627 mm	641 mm	656 mm
