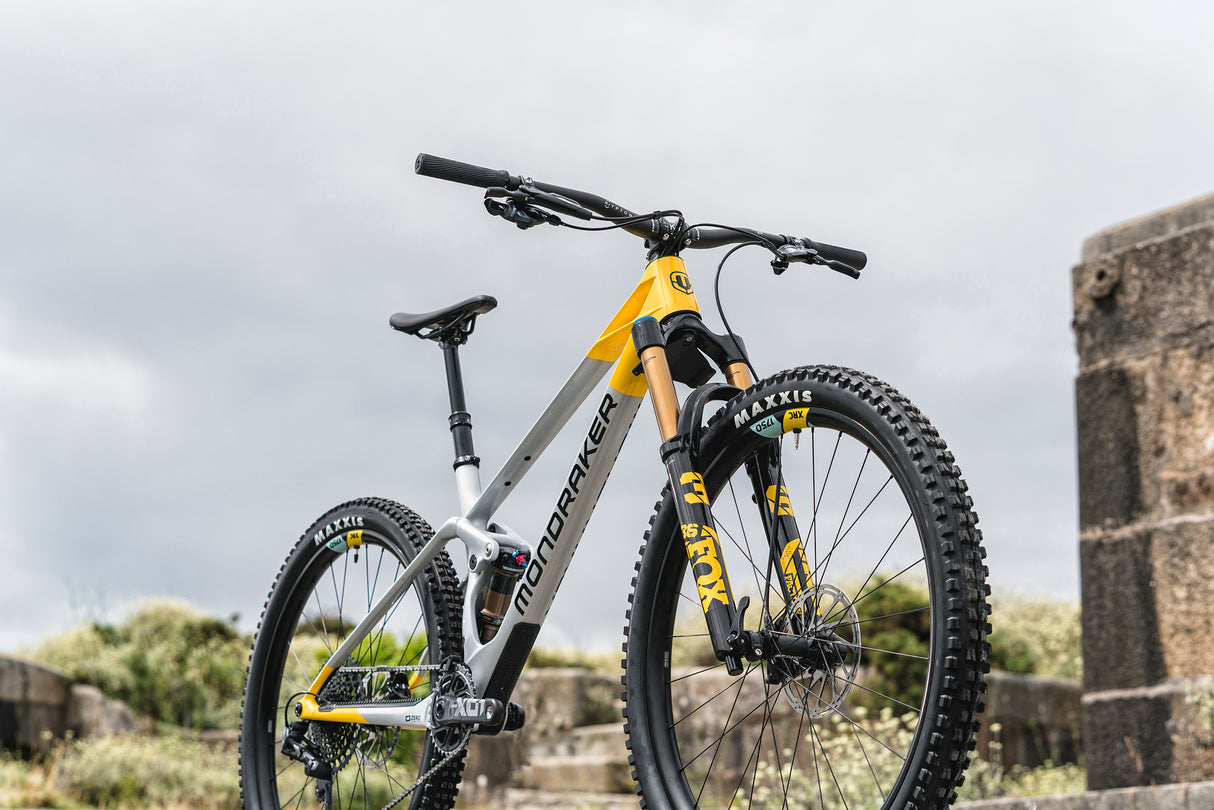

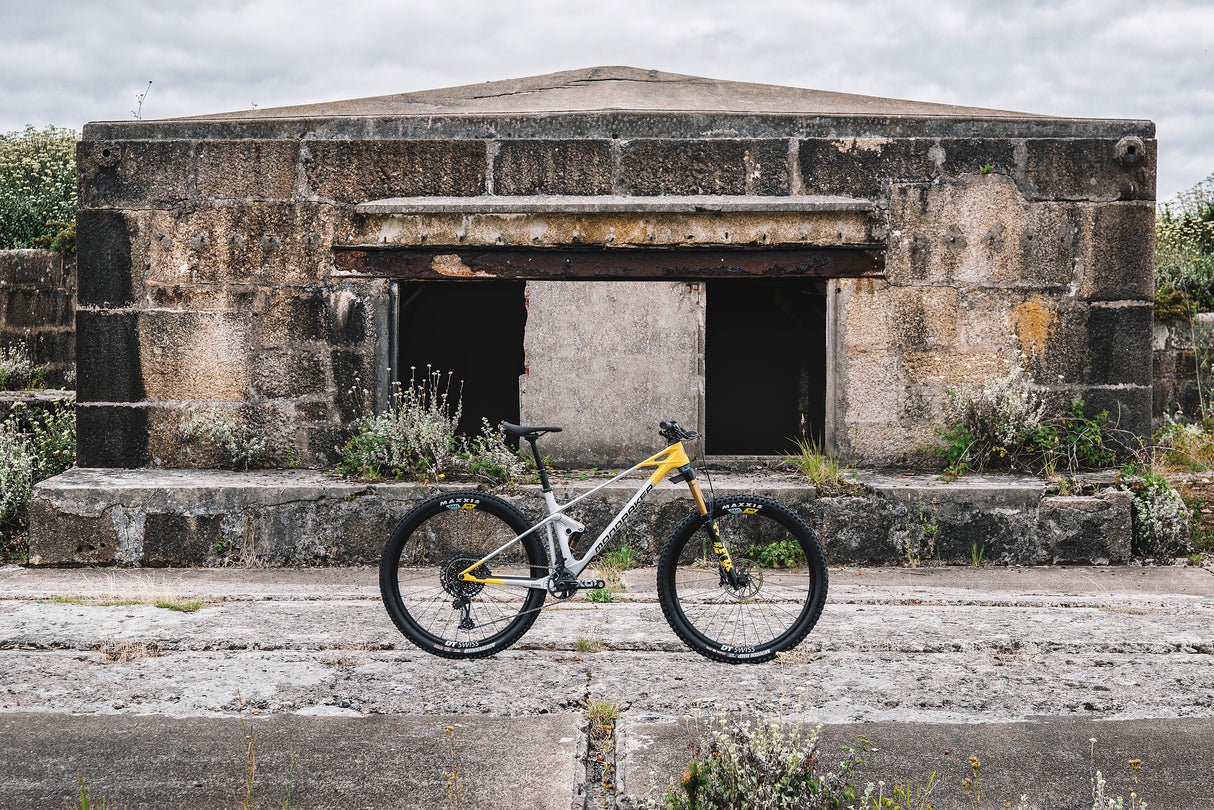

Mondraker - Raze Carbon RR Bike - Silver-Ohlins Yellow (TRAIL)
SKU:
MOND-B-Newtrail-RR-Silver22-L
$9,199.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Mondraker - Raze Carbon RR Bike - Silver-Ohlins Yellow (TRAIL) - L / Silver-Öhlins Yellow | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Couldn't load pickup availability
NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
GEOMETRY
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Colors: Silver / Ohlins Yellow
Raze is more than a conventional trail bike, which combines traits of XC and Enduro into one model. Raze Carbon model comes with MIND telemetry system for proper suspension setup. MIND also collects and transmits ride data along with suspension setup data to myMondraker app.
The compact and lighter stealth full carbon frame and HHG internal cable routing help with resistance and mobility for better speed and performance. Mondraker’s proprietary Stealth carbon construction uses specific positioning and direction of carbon fibers to optimize benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.
High-speed riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
Raze Carbon uses an enhanced zero suspension that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |

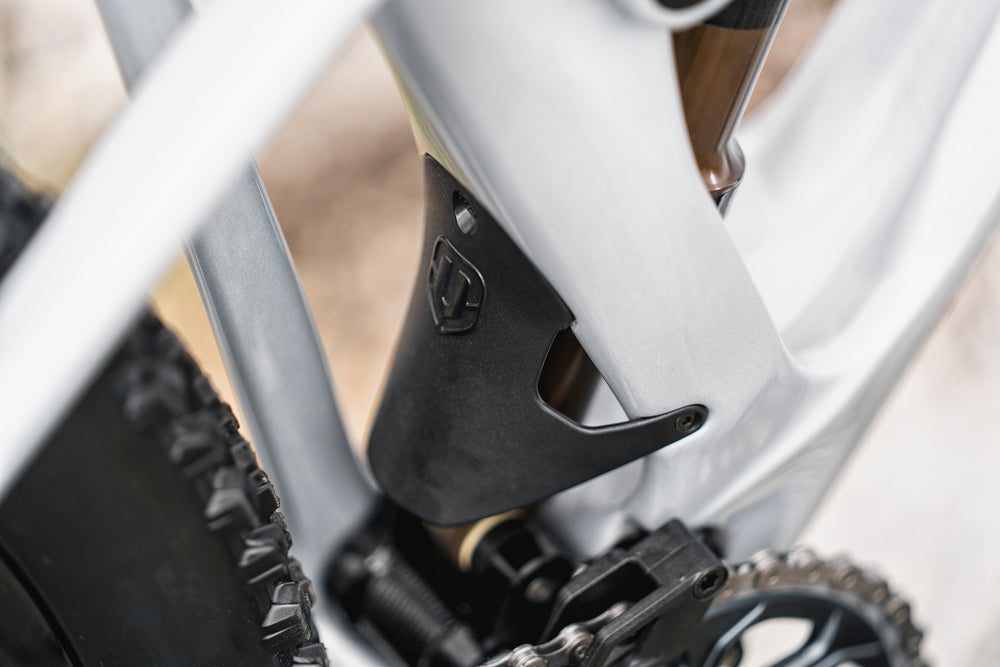

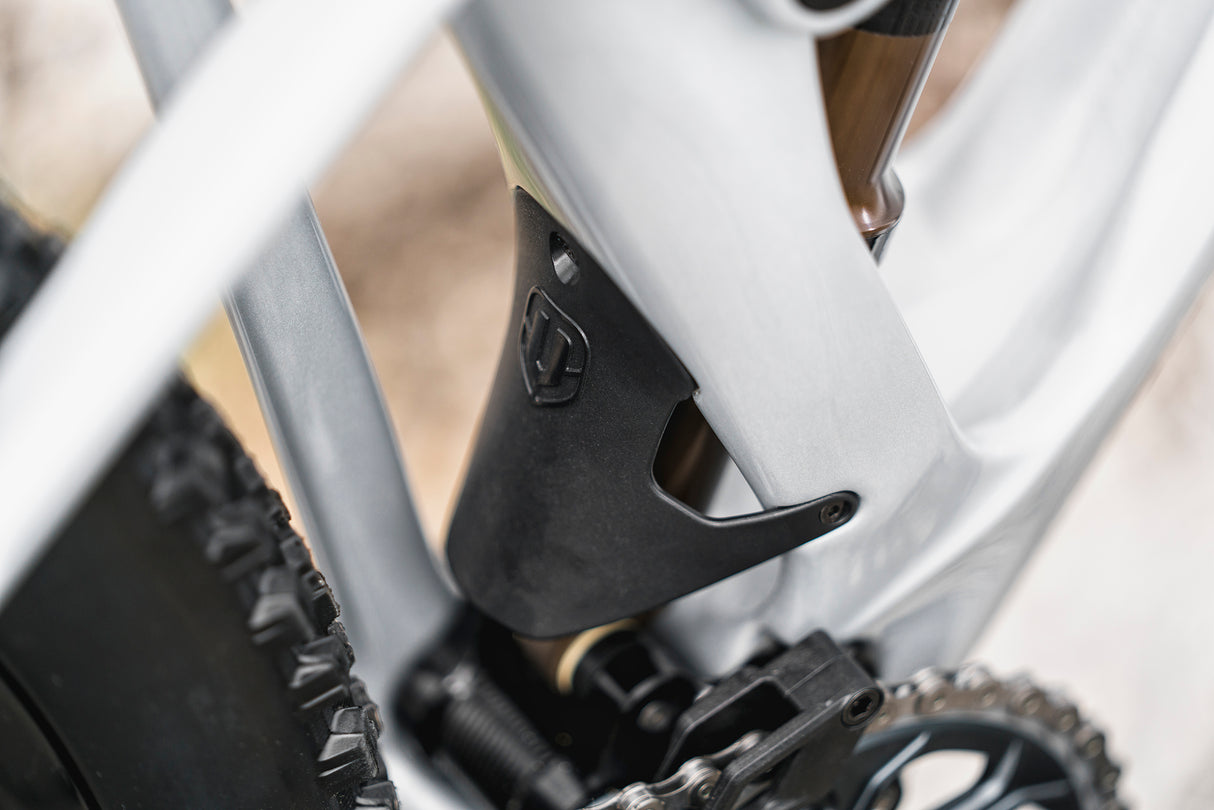

Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. |
|
SIZES |
S: 380mm / M: 420mm / L: 450mm / XL: 500mm |
|
REAR SHOCK |
Fox Float DPS Factory Kashima evol LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
|
SHOCK SETTINGS |
Light compression, light rebound, air volume spacer 0.6 |
|
FORK |
Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
|
HEADSET |
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
|
STEM |
|
|
HANDLEBAR |

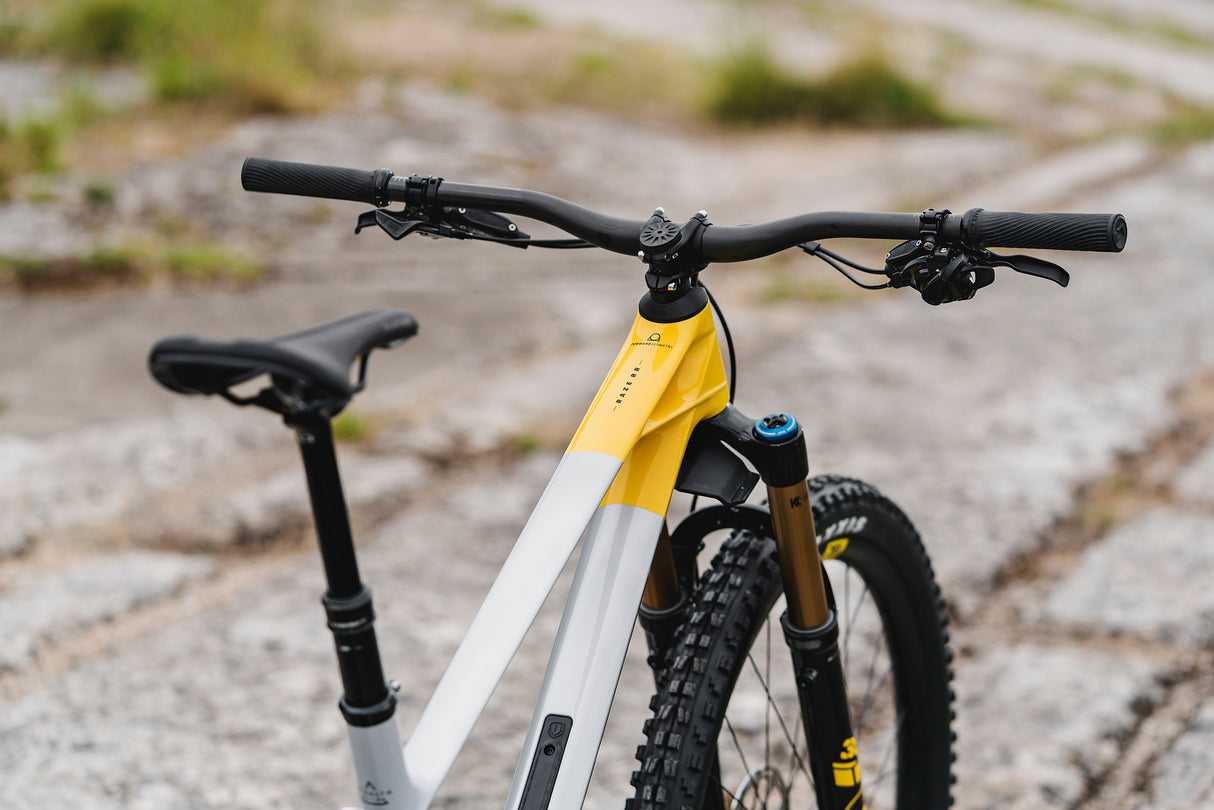

Onoff Kripton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
|
GRIPS |
Onoff Diamond, 1lock-on, 135mm |
|
SEATPOST |
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm |
|
SADDLE |
Fizik Antares R7 |
|
FRONT BRAKE |
Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
REAR BRAKE |
Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
BRAKE LEVER |
Sram G2 RS, SwingLink, tool-free reach adjust |
|
RIMS |
DT Swiss XM1700 Spline 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes |
|
SPOKES |
DT Competition, straightpull |
|
FRONT HUB |
DT 350, Boost 15x110mm, IS 6 bolts |
|
REAR HUB |
DT 350, Boost 12x148mm, 36T SL Ratchet system, IS 6 bolts, XD freehub |
|
FRONT TIRE |
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
|
REAR TIRE |
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
|
CRANKSET |
Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
|
RINGS |
32T, CNC-machined alloy, X-SYNC 2 |
|
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 73mm |
|
PEDALS |
- |
|
CHAIN |
Sram GX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
|
CASSETTE |
Sram XG-1275, 10-52T, 12s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Sram UDH |
|
OTHERS |
- |
|
WEIGHT |
12.5 kg |
GEOMETRY
MEASUREMENTS / GEOMETRY(Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seattube Length |
375 mm |
415 mm |
445 mm |
500 mm |
|
B |
Top tube Length |
595 mm |
620 mm |
645 mm |
670 mm |
|
C |
Bottom Bracket Drop |
-30 mm |
-30 mm |
-30 mm |
-30 mm |
|
D |
Bottom Bracket Height |
343 mm |
343 mm |
343 mm |
343 mm |
|
E |
Chainstay Length |
435 mm |
435 mm |
435 mm |
435 mm |
|
F |
Seat Tube Angle |
71° |
71° |
71° |
71° |
|
G |
Effective Seat Tube Angle |
76.5° |
76.5° |
76.5° |
76.5° |
|
H |
Headtube Angle |
65.5° |
65.5° |
65.5° |
65.5° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1193 mm |
1217 mm |
1243 mm |
1269 mm |
|
K |
Headtube Length |
90 mm |
100 mm |
115 mm |
130 mm |
|
L |
Reach |
455 mm |
475 mm |
495 mm |
515 mm |
|
M |
Stack |
608 mm |
617 mm |
631 mm |
645 mm |
RESOURCES
Bike Size Guide (Click on image to zoom in)
Raze RR Setup (Click to open in new window). Or download using the viewer below
