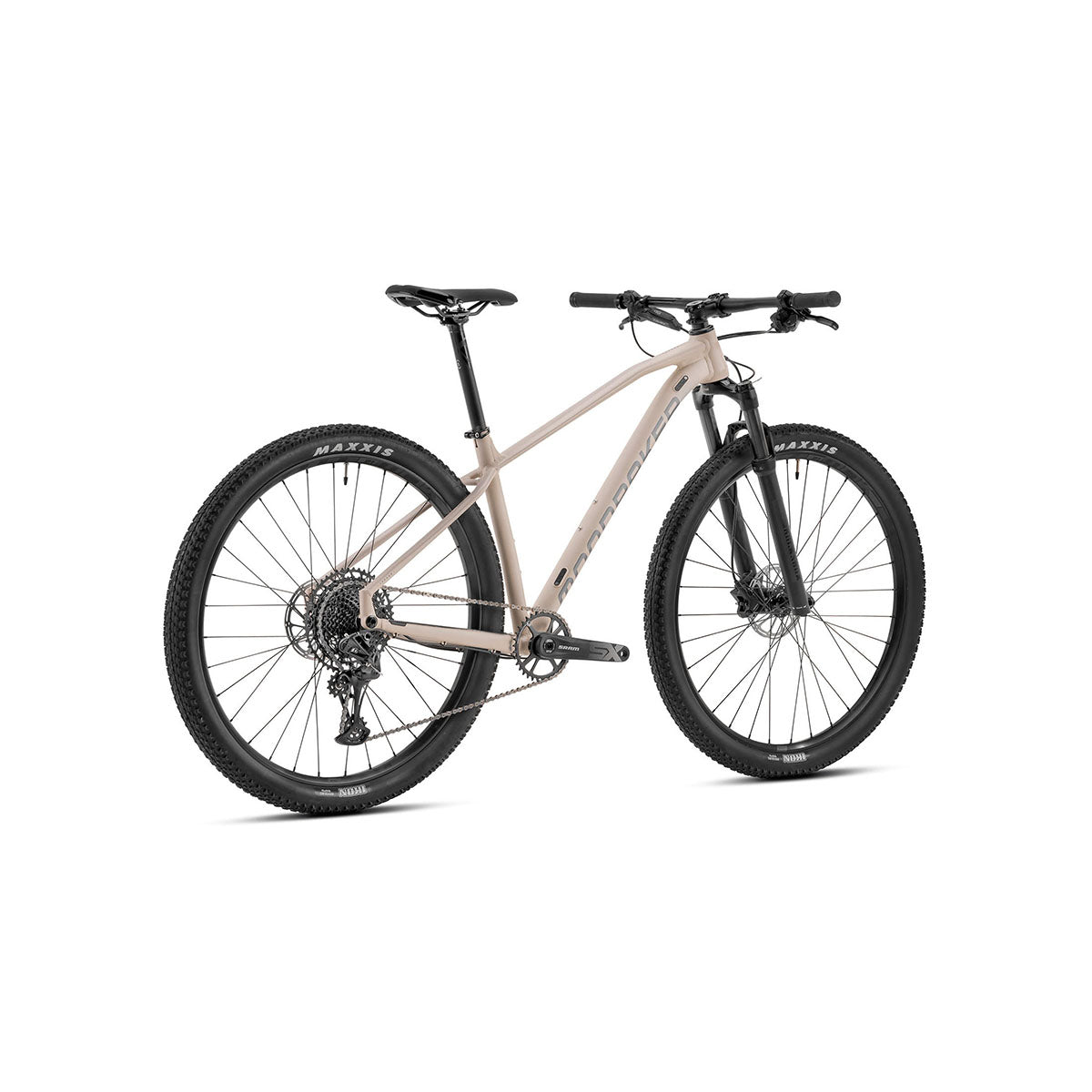

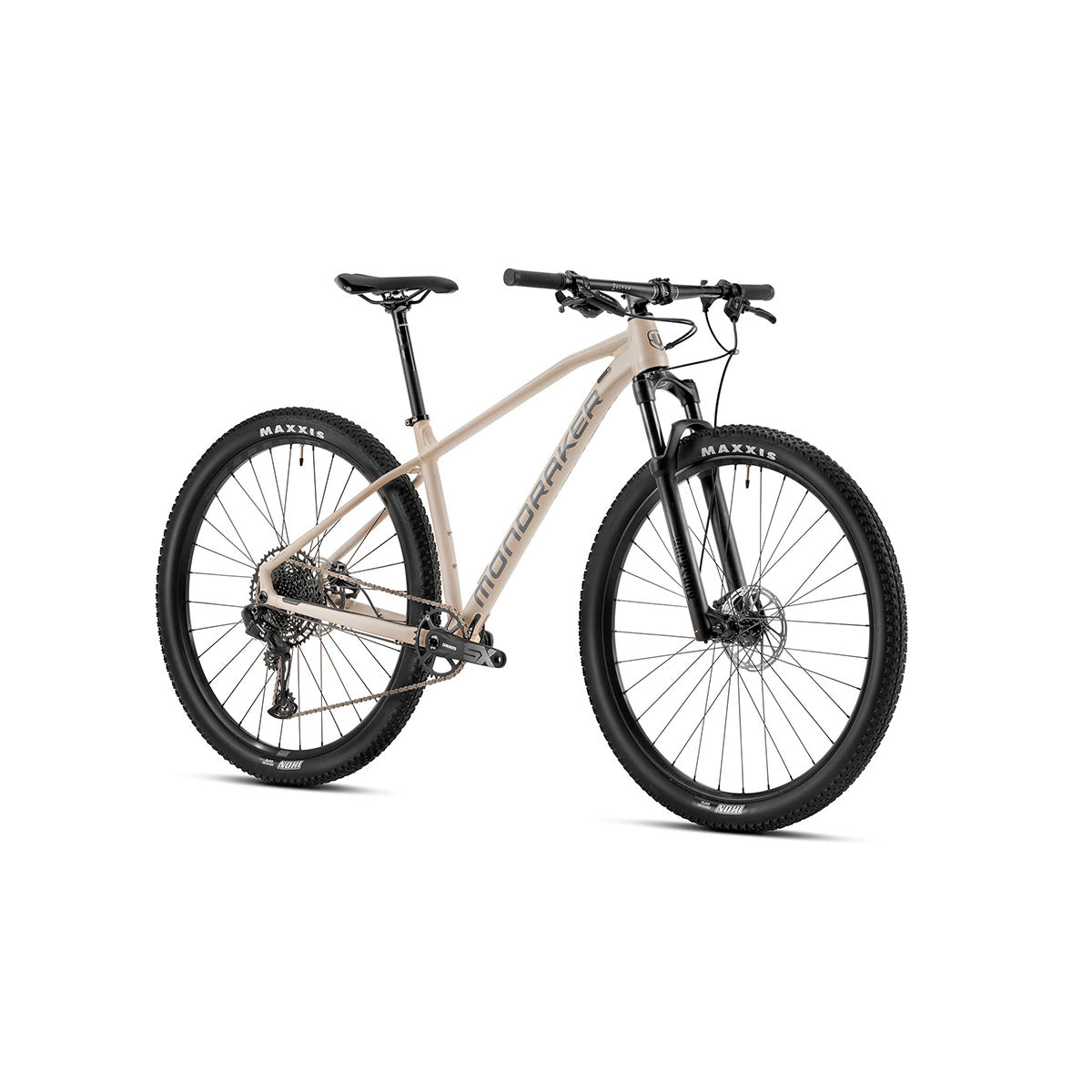

Mondraker - CHRONO Bike - Grey/Black (XC Pro)
Mondraker - CHRONO Bike - Grey/Black (XC Pro) - S / Grey-Black | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Sizes: S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Color:: Matte Desert Grey / Graphite
Chrono Bike is also available in Gloss Black/Orange
Experience the Chrono difference in Cross-country ridessand marathons! These stylish and modern XC bikes with race geometry, are also great for urban city riders.
Durable stealth alloy frame and HHG internal routing help with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
XC Racers will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains.
HHG Internal Cable Routing helps with a minimalistic, clean design. Chrono XC bikes are race-ready with Xtralite alloy butted frame, boost rear axle and BSA bottom bracket for enhanced traction and momentum. Chrono XC has a high-performance suspension system that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails.
Chrono XC Pro Bike sports high-performance rear derailleurs and wide 29” tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle |
|
SIZES |
S: 395mm / M: 430mm / L: 470mm / XL: 520mm |
|
REAR SHOCK |
- |
|
SHOCK SETTINGS |
- |
|
FORK |
RockShox Judy Silver TK 29, 100mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 46mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload |
| FORK REMOTE | RockShox PopLoc |
|
HEADSET |
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
|
STEM |
ONOFF Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm |
|
HANDLEBAR |
ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
|
GRIPS |
ONOFF Twin, 1lock-on, 135mm |
|
SEATPOST |
ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm |
|
SADDLE |
Mondraker XC Series, steel rail |
|
FRONT BRAKE |
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
REAR BRAKE |
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
BRAKE LEVER |
Sram Level, tooled reach adjust, lever pivot bushings |
|
RIMS |
MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes |
|
SPOKES |
CN round stainless steel |
|
FRONT HUB |
Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts |
|
REAR HUB |
Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts, MS freehub |
|
FRONT TIRE |
Maxxis Ikon 29x2.20, 60TPI, wire bead |
|
REAR TIRE |
Maxxis Ikon 29x2.20, 60TPI, wire bead |
|
CRANKSET |
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
|
RINGS |
34T, steel, X-Sync 2 |
|
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 73mm |
|
PEDALS |
- |
|
CHAIN |
Sram SX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
|
CASSETTE |
Sram PG-1210, 11-50T, 12s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
- |
|
WEIGHT |
12.9kg |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
395 mm |
430 mm |
470 mm |
520 mm |
|
B |
Top Tube Length |
590 mm |
610 mm |
630 mm |
650 mm |
|
C |
Bottom Bracket Drop |
-65 mm |
-65 mm |
-65 mm |
-65 mm |
|
D |
Bottom Bracket Height |
305 mm |
305 mm |
305 mm |
305 mm |
|
E |
Chainstay Length |
435 mm |
435 mm |
435 mm |
435 mm |
|
F |
Seat Tube Angle, Actual |
72.5° |
72.5° |
72.5° |
72.5° |
|
G |
Seat Tube Angle, Effective |
73.5° |
73.5° |
73.5° |
73.5° |
|
H |
Head Tube Angle |
70° |
70° |
70° |
70° |
|
I |
Fork Offset |
44/46 mm |
44/46 mm |
44/46 mm |
44/46 mm |
|
J |
Wheelbase |
1087 mm |
1107 mm |
1127 mm |
1148 mm |
|
K |
Head Tube Length |
100 mm |
100 mm |
110 mm |
125 mm |
|
L |
Reach |
406 mm |
426 mm |
444 mm |
460 mm |
|
M |
Stack |
618 mm |
618 mm |
628 mm |
642 mm |
RESOURCES
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
