Mondraker - PODIUM CARBON RR SL Frame Kit - Translucent Silver Carbon-Silver (XC Race)
Mondraker - PODIUM CARBON RR SL Frame Kit - Translucent Silver Carbon-Silver (XC Race) - L / Translucent Silver Carbon-Silver | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Couldn't load pickup availability

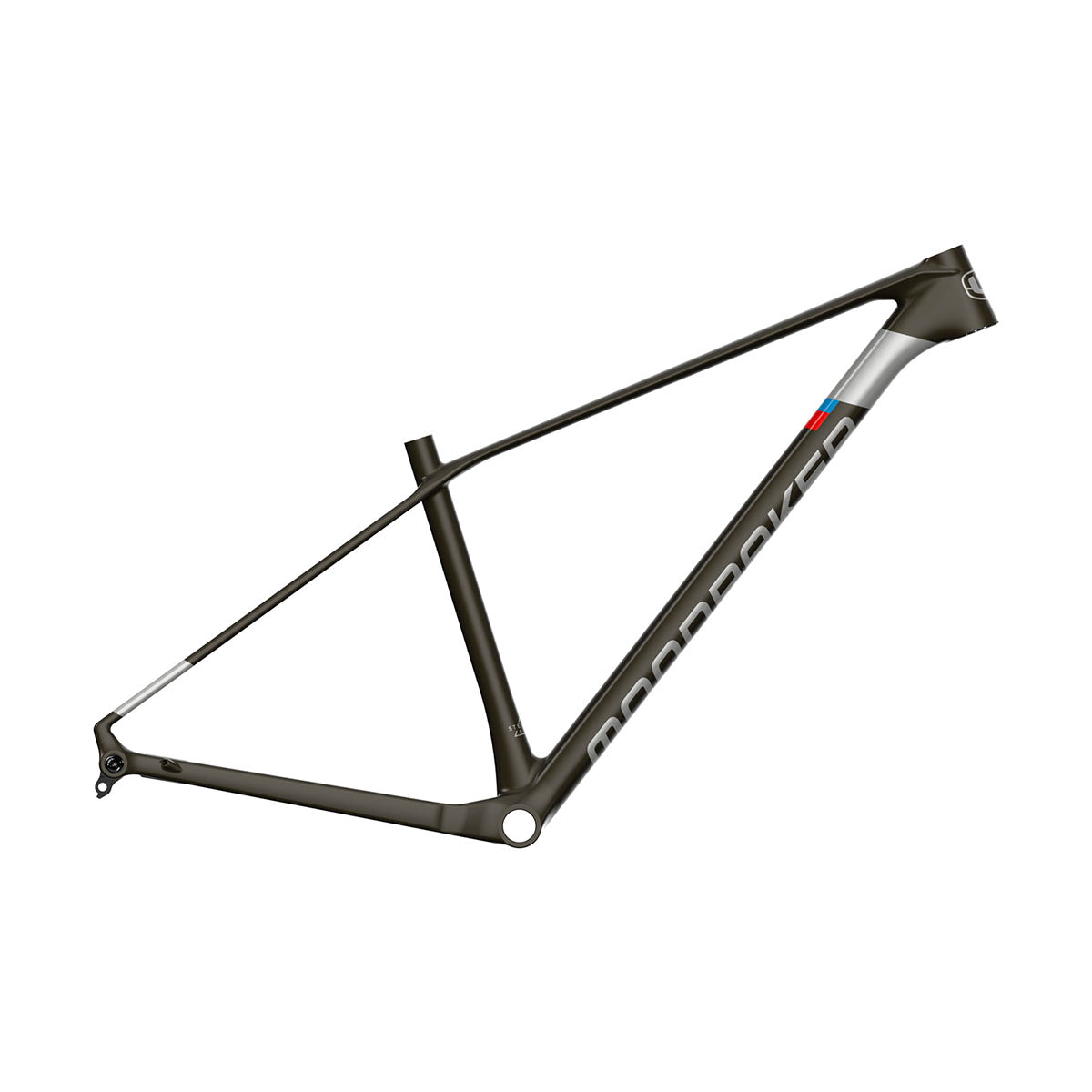

Frame kit for Mondraker Podium Carbon RR SL 2022 Bike.
NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
HIGHLIGHTS
FORWARD GEOMETRY:
Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
STEALTH CARBON AIR:
The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.
Size: S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Color: Translucent Silver Carbon / Gloss Racing Silver
TECH SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube,HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible |
|
SIZES |
S: 390mm / M: 420mm / L: 470mm / XL: 510mm |
|
HEADSET |
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°,bottom 51.9x40x8x45°x45° |
MEASUREMENTS
MEASUREMENTS / GEOMETRY (Click on image to zoom)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
390 mm |
420 mm |
470 mm |
510 mm |
|
B |
Top Tube Length |
590 mm |
611mm |
632 mm |
650 mm |
|
C |
Bottom Bracket Drop |
-65 mm |
-65 mm |
-65 mm |
-65 mm |
|
D |
Bottom Bracket Height |
300 mm |
300 mm |
300 mm |
300 mm |
|
E |
Chainstay Legth |
430 mm |
430 mm |
430 mm |
430 mm |
|
F |
Seat Tube Angle, Actual |
73° |
73° |
73° |
73° |
|
G |
Seat Tube Angle, Effective |
74.5° |
74.5° |
74.5° |
74.5° |
|
H |
Head Tube Angle |
68.5° |
68.5° |
68.5° |
68.5° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1107 mm |
1128 mm |
1150 mm |
1170 mm |
|
K |
Head Tube Length |
85 mm |
90 mm |
100 mm |
115 mm |
|
L |
Reach |
425 mm |
444 mm |
463 mm |
477 mm |
|
M |
Stack |
598 mm |
602 mm |
611 mm |
625 mm |
