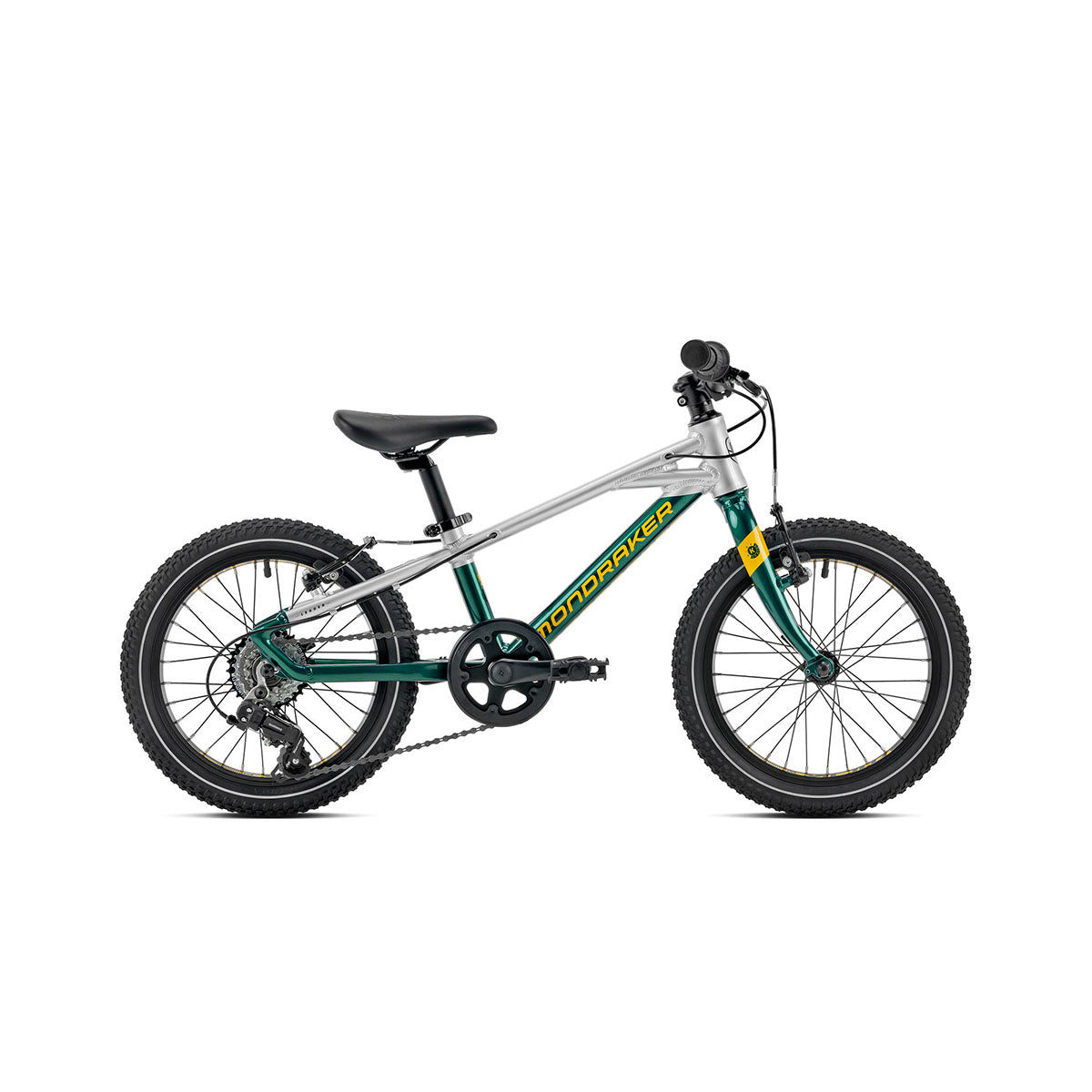

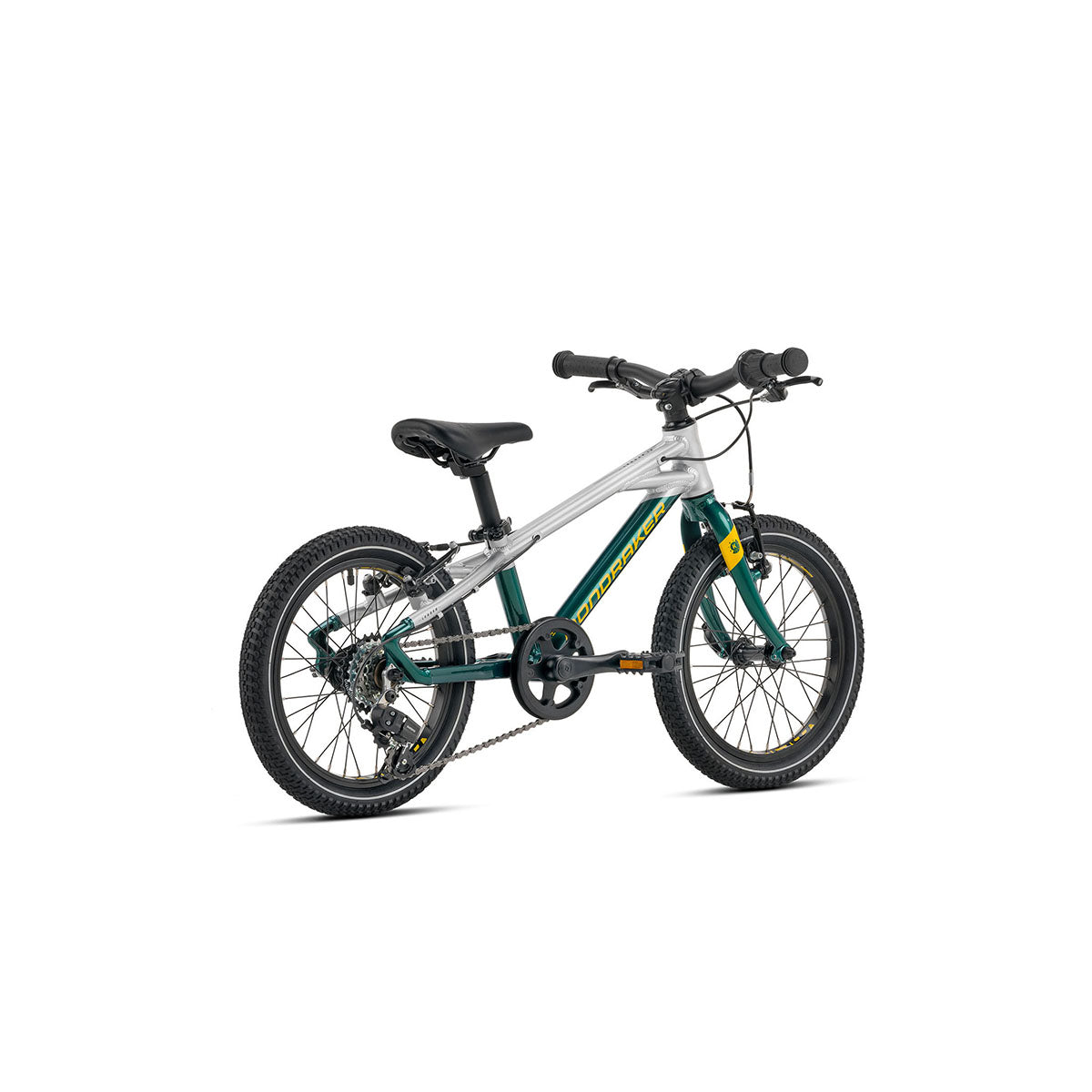

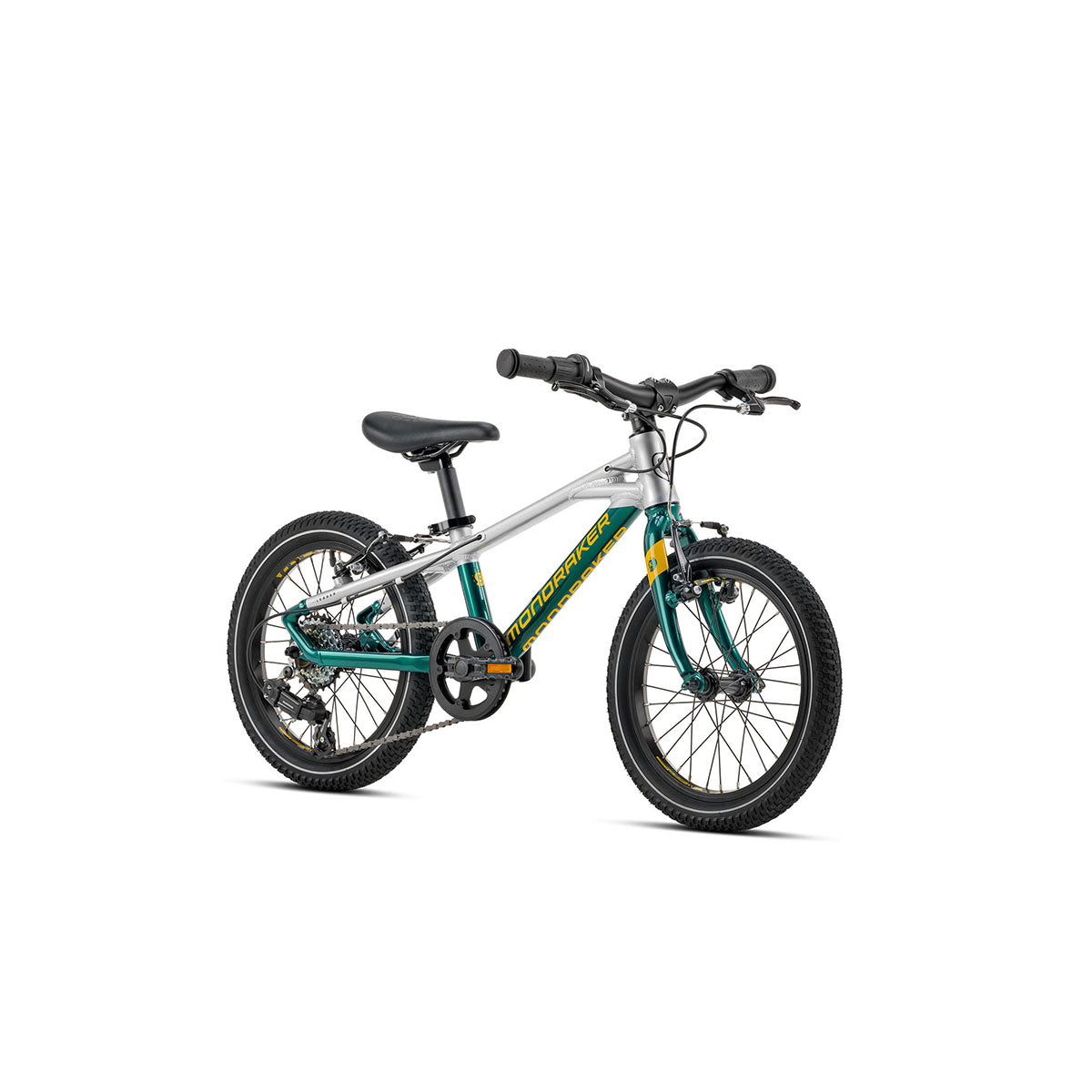

Mondraker - LEADER 16 Bike - Green/Silver/Gray (KIDS)
Mondraker - LEADER 16 Bike - Green/Silver/Gray (KIDS) - XS / Green-Silver-Gray | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Size: One size 210 mm
Color: Gloss British Racing Green / Racing Silver / Yellow
Young bikers can now start a taste of mountain biking with Leader 16! This kids’ sports bike is packed with mountain bike features tailored towards children who want to get started on trail-shredding rides.
The ultra-light stealth alloy EVO aluminium frame with an integrated headset and compact geometry helps with resistance and mobility for better speed and performance. Leader 16 sports high-performance rear derailleurs and 16” tires, for ultimate precision and grip through uneven and rough trails.
HHG Internal Cable Routing helps with a minimalistic, clean design with noise control features. Young riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible brakes.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Leader 16 7005 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger,BSA bottom bracket, QR 9mm rear axle |
|
SIZES |
One size 210mm |
|
REAR SHOCK |
- |
|
SHOCK SETTINGS |
- |
|
FORK |
MDK 16 Kid, Alloy stanchions, Chromoly steering tube |
|
HEADSET |
CH-9280, Internal ZS, 44mm external diameter cup |
|
STEM |
MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0°, length: 35mm |
|
HANDLEBAR |
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 500mm, 9° backsweep, 5° upsweep, 25.4mm barbore |
|
GRIPS |
Onoff Diamond, 75mm |
|
SEATPOST |
MDK XC, 6061 T6 alloy, diameter 27.2mm, length 200mm, offset 15mm |
|
SADDLE |
Mondraker Leader Kids series |
|
FRONT BRAKE |
Tektro Alloy V-Brake |
|
REAR BRAKE |
Tektro Alloy V-Brake |
|
BRAKE LEVER |
Tektro 2-finger kids |
|
RIMS |
MDK-16 Alloy, 32 spokes |
|
SPOKES |
CN round stainless steel |
|
FRONT HUB |
Formula OV31FQR, 9x100mm QR axle, cup & cone ball bearings |
|
REAR HUB |
Formula OV31RQR, 9x135mm QR axle, cup & cone ball bearings |
|
FRONT TIRE |
Kenda Kaos 16x2.1, single compound, 30TPI, wire bead |
|
REAR TIRE |
Kenda Kaos 16x2.1, single compound, 30TPI, wire bead |
|
CRANKSET |
Prowheel, 102mm |
|
RINGS |
32T |
|
BOTTOM BRACKET |
CH-52 |
|
PEDALS |
Wellgo LU-P28 |
|
CHAIN |
KMC Z-6, 6s |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Shimano TY200-SS, super short cage, 6s |
|
SHIFT LEVERS |
Shimano RV200-6R, Revoshift, 6s |
|
CASSETTE |
Shimano TZ510-6, 14-28T, 6s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Mondraker M073 |
|
OTHERS |
- |
|
WEIGHT |
8.4kg |
GEOMETRY
MEASUREMENTS / GEOMETRY
(Click on image to expand)
|
Size |
16 |
|
|
A |
Seat Tube Length |
215 mm |
|
B |
Top Tube Length |
395 mm |
|
C |
Bottom Bracket Drop |
-10 mm |
|
D |
Bottom Bracket Height |
190 mm |
|
E |
Chainstay Length |
310 mm |
|
F |
Seat Tube Angle, Actual |
69º |
|
G |
Seat Tube Angle, Effective |
69º |
|
H |
Head Tube Angle |
69º |
|
I |
Fork Offset |
30 mm |
|
J |
Wheelbase |
733 mm |
|
K |
Head Tube Length |
100 mm |
|
L |
Reach |
265 mm |
|
M |
Stack |
338 mm |
BIKE SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
