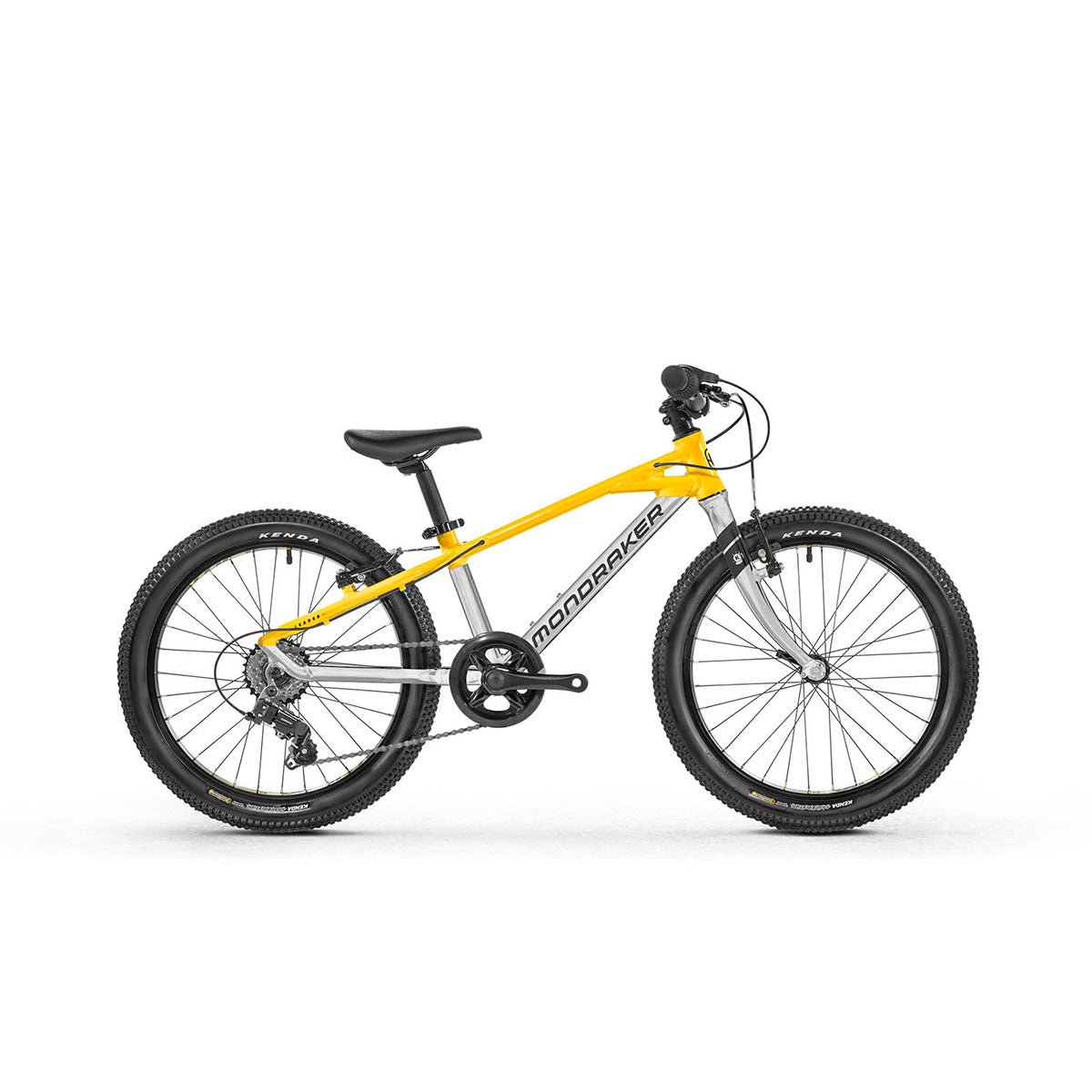

Mondraker - LEADER 20 Bike - Racing Silver-Ohlins Yellow (KIDS)
Mondraker - LEADER 20 Bike - Racing Silver-Ohlins Yellow (KIDS) - XS / Racing Silver-Öhlins Yellow | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Couldn't load pickup availability
For inquiries, please call us at 805-850-3200.
DESCRIPTION
Size: One size 260 mm
Colors: Gloss Racing Silver / Yellow
Young bikers can now start a taste of mountain biking with Leader 20! This kids’ sports bike is packed with mountain bike features tailored towards children who want to get started on trail-shredding rides.
The ultra-light stealth alloy EVO aluminium frame with an integrated headset and compact geometry helps with resistance and mobility for better speed and performance. Leader 20 sports high-performance rear derailleurs and 20” tires, for ultimate precision and grip through uneven and rough trails.
HHG Internal Cable Routing helps with a minimalistic, clean design with noise control features. Young riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible brakes.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Leader 20 7005 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger,BSA bottom bracket, QR 9mm rear axle |
|
SIZES |
One size 260mm |
|
REAR SHOCK |
- |
|
SHOCK SETTINGS |
- |
|
FORK |
MDK 20 Kid, Alloy stanchions, Chromoly steering tube |
|
HEADSET |
CH-9280, Internal ZS, 44mm external diameter cup |
|
STEM |
MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0°, length: 35mm |
|
HANDLEBAR |
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 560mm, 9° backsweep, 5° upsweep, 25.4mm barbore |
|
GRIPS |
Onoff Diamond, 75mm |
|
SEATPOST |
MDK XC, 6061 T6 alloy, diameter 27.2mm, length 250mm, offset 15mm |
|
SADDLE |
Mondraker Leader Kids series |
|
FRONT BRAKE |
Tektro Alloy V-Brake |
|
REAR BRAKE |
Tektro Alloy V-Brake |
|
BRAKE LEVER |
Tektro 2-finger kids |
|
RIMS |
MDK-20 Alloy, 32 spokes |
|
SPOKES |
CN round stainless steel |
|
FRONT HUB |
Formula OV31FQR, 9x100mm QR axle, cup & cone ball bearings |
|
REAR HUB |
Formula OV31RQR, 9x135mm QR axle, cup & cone ball bearings |
|
FRONT TIRE |
Kenda Small Block Eight 20x2.1, single compound, 30TPI, wire bead |
|
REAR TIRE |
Kenda Small Block Eight 20x2.1, single compound, 30TPI, wire bead |
|
CRANKSET |
Prowheel, 140mm |
|
RINGS |
36T |
|
BOTTOM BRACKET |
CH-52 |
|
PEDALS |
Wellgo LU-P28 |
|
CHAIN |
KMC Z-7, 7s |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Shimano TY200-SS, super short cage, 7s |
|
SHIFT LEVERS |
Shimano RV200-7R, Revoshift, 7s |
|
CASSETTE |
Shimano TZ510-7, 14-28T, 7s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Mondraker M073 |
|
OTHERS |
- |
|
WEIGHT |
- |
GEOMETRY
MEASUREMENTS / GEOMETRY
(Click on image to expand)
|
Size |
20 |
|
|
A |
Seat Tube Length |
260 mm |
|
B |
Top Tube Length |
440 mm |
|
C |
Bottom Bracket Drop |
-15 mm |
|
D |
Bottom Bracket Height |
240 mm |
|
E |
Chainstay Length |
350 mm |
|
F |
Seat Tube Angle, Actual |
71º |
|
G |
Seat Tube Angle, Effective |
71º |
|
H |
Head Tube Angle |
68º |
|
I |
Fork Offset |
45 mm |
|
J |
Wheelbase |
855 mm |
|
K |
Head Tube Length |
100 mm |
|
L |
Reach |
307 mm |
|
M |
Stack |
386 mm |
RESOURCES
Bike Size Guide (Click on image to zoom in)
Specs for all 2022 Bikes (Click to open in new window). Or download using the viewer below
