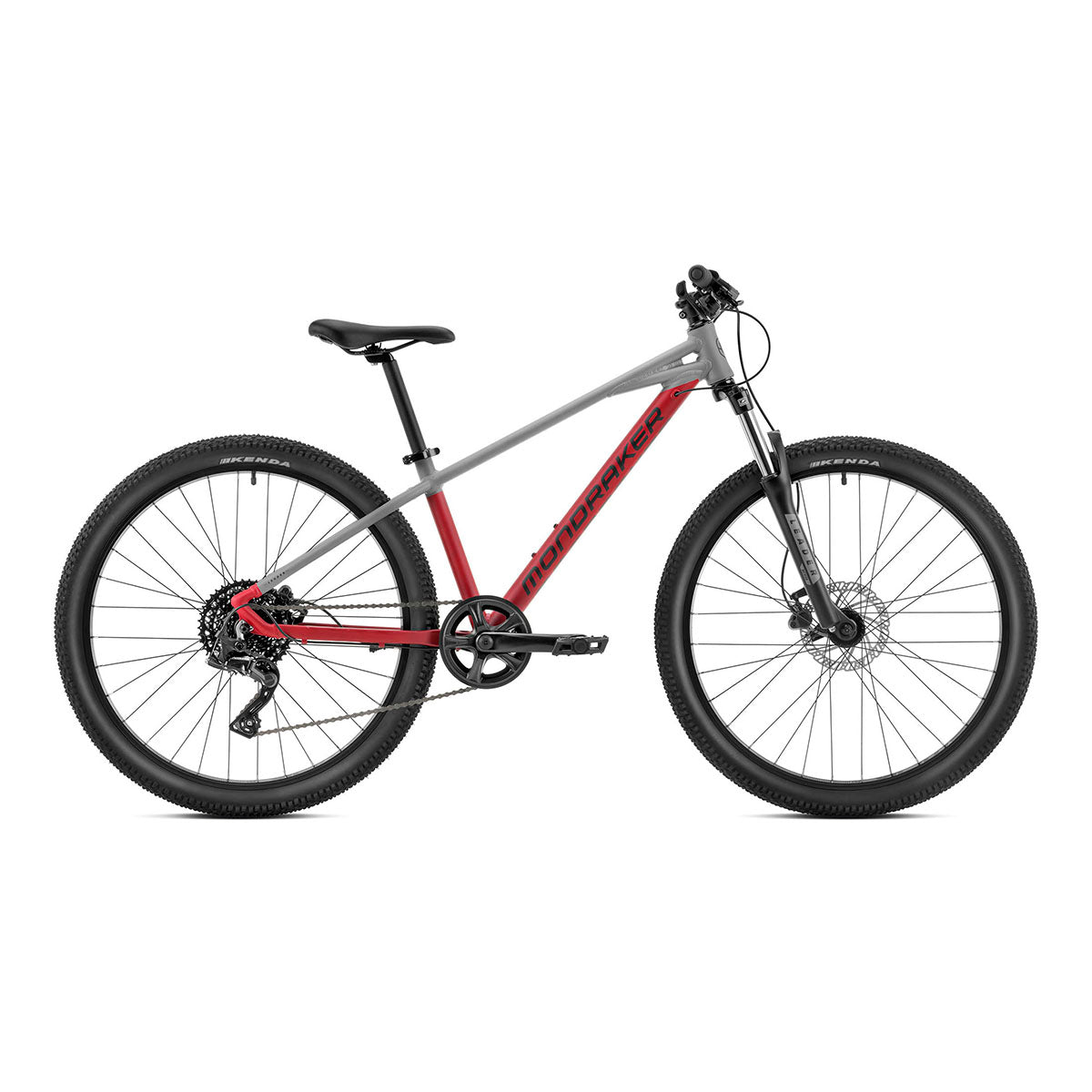

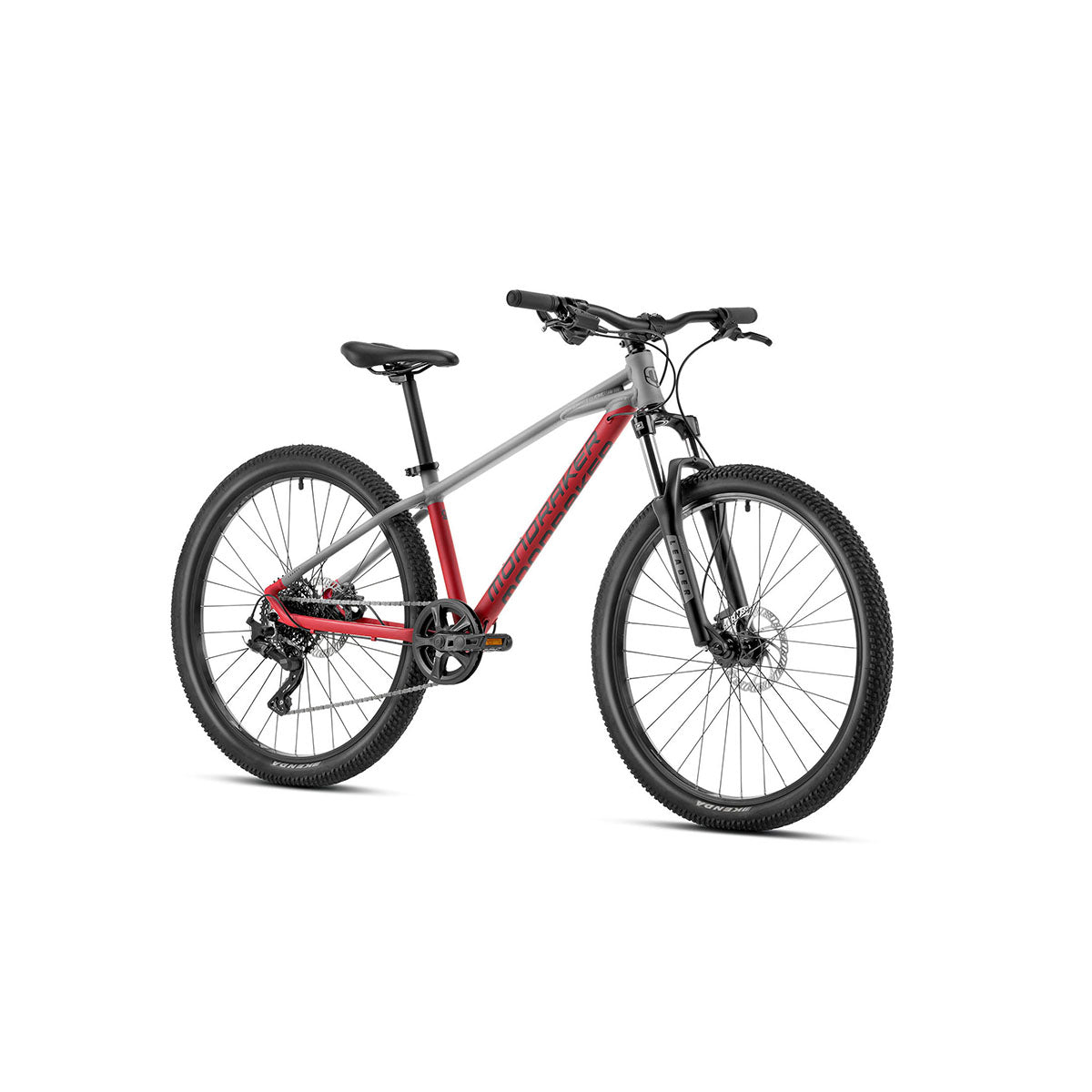

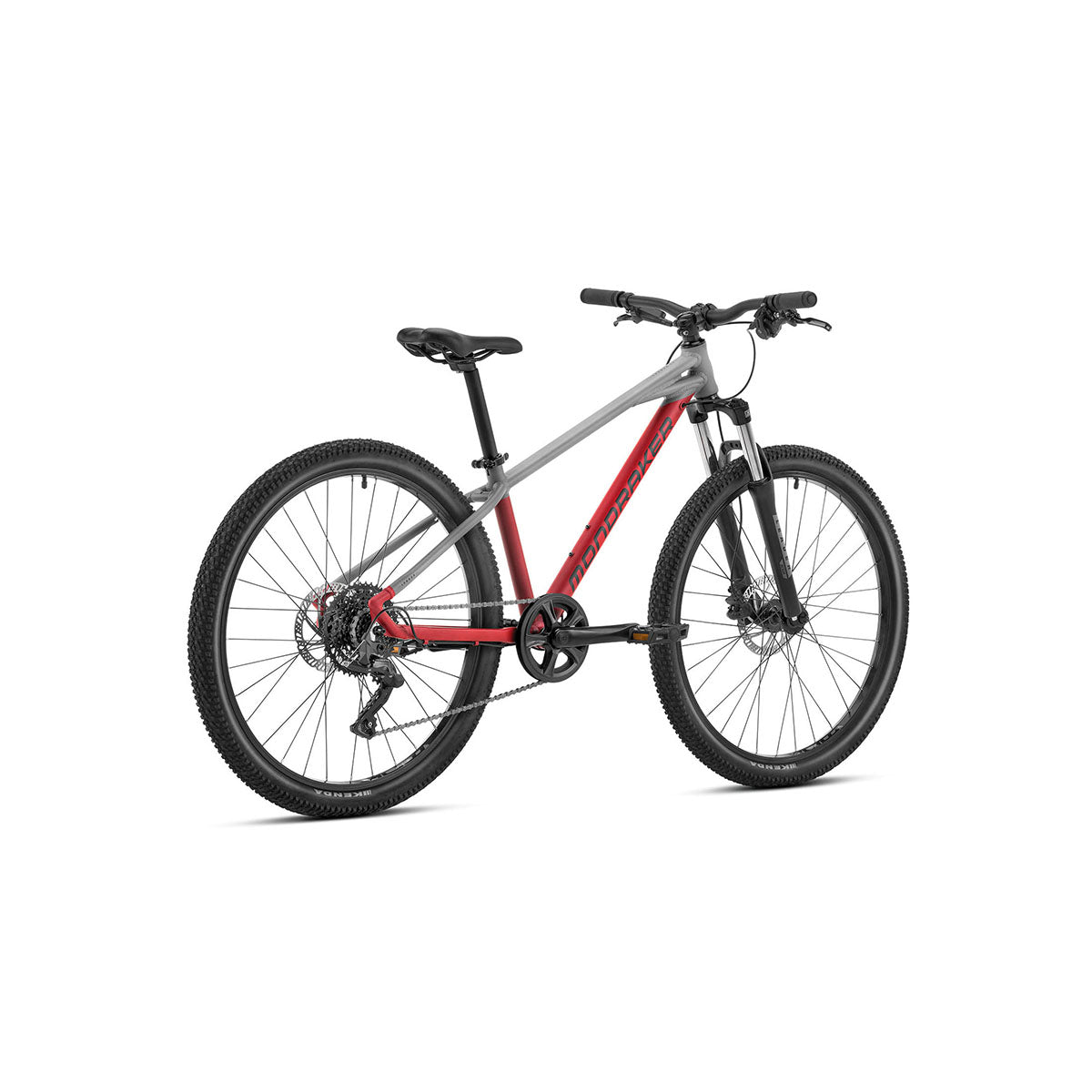

Mondraker - LEADER 26 Bike - Red/Grey (KIDS)

SKU: MOND-B-Lead26-Red23

$1,099.00

Shipping calculated at checkout.

Size

XS

Color: Red-Grey

Mondraker - LEADER 26 Bike - Red/Grey (KIDS)

Product variants

NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Size: One size 320 mm
Colors: Matte Cherry Red / Nimbus Grey

Young bikers can now start a taste of mountain biking with Leader 26! This kids’ sports bike is packed with mountain bike features tailored towards children who want to get started on trail-shredding rides.

The ultra-light stealth alloy EVO aluminium frame with an integrated headset and compact geometry helps with resistance and mobility for better speed and performance. Leader 26 sports high-performance rear derailleurs and 26” tires, for ultimate precision and grip through uneven and rough trails.

HHG Internal Cable Routing helps with a minimalistic, clean design with noise control features. Young riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible brakes.

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME	Leader 26 7005 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, QR 9mm rear axle
SIZES	One size 320mm
REAR SHOCK	-
SHOCK SETTINGS	-
FORK	Suntour XCE28 DS 26” 100mm, soft spring. Settings: spring preload
HEADSET	CH-9280, Internal ZS, 44mm external diameter cup
STEM	MDK XC, 6061 forged alloy, 25.4mm barbore, rise: 0°, length: 45mm
HANDLEBAR	MDK XC 1.0, 6061 alloy, rise: 25mm, width: 620mm, 9° backsweep, 5° upsweep, 25.4mm barbore
GRIPS	Onoff Diamond, 86mm
SEATPOST	MDK XC, 6061 T6 alloy, diameter 27.2mm, length 300mm, offset 15mm
SADDLE	Mondraker Leader Kids series
FRONT BRAKE	Tektro M291 Auriga 160mm
REAR BRAKE	Tektro M291 Auriga 160mm
BRAKE LEVER	Tektro M291 Auriga
RIMS	MDK-24 Alloy, 32 spokes
SPOKES	CN round stainless steel
FRONT HUB	Formula DC20FQR, 9x100mm QR axle, cup & cone ball bearings
REAR HUB	Formula DC22LW QR, 9x135mm QR axle, cup & cone ball bearings
FRONT TIRE	Kenda Small Block Eight 26x2.35, single compound, 30TPI, wire bead
REAR TIRE	Kenda Small Block Eight 26x2.35, single compound, 30TPI, wire bead
CRANKSET	Prowheel PRO, 152mm
RINGS	36T
BOTTOM BRACKET	CH-52
PEDALS	Wellgo LU-205
CHAIN	KMC Z-8.1, 8s
FRONT DERAILLEUR	-
REAR DERAILLEUR	Microshift Acolyte RDM5180M 1X8
SHIFT LEVERS	Microshift Acolyte RDM5180M 1X8 Direct Cable Pull Design
CASSETTE	Microshift Acolyte CSH083 12-42 Black
MOTOR	-
BATTERY	-
DISPLAY	-
DERAILLEUR HANGER	Mondraker M073
OTHERS	-
WEIGHT	11.7kg

GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

	Size	26
A	Seat Tube Length	350 mm
B	Top Tube Length	565 mm
C	Bottom Bracket Drop	-30 mm
D	Bottom Bracket Height	285 mm
E	Chainstay Length	420 mm
F	Seat Tube Angle, Actual	71º
G	Seat Tube Angle, Effective	71º
H	Head Tube Angle	68º
I	Fork Offset	40 mm
J	Wheelbase	1050 mm
K	Head Tube Length	100 mm
L	Reach	377 mm
M	Stack	553 mm

BIKE SIZE GUIDE
