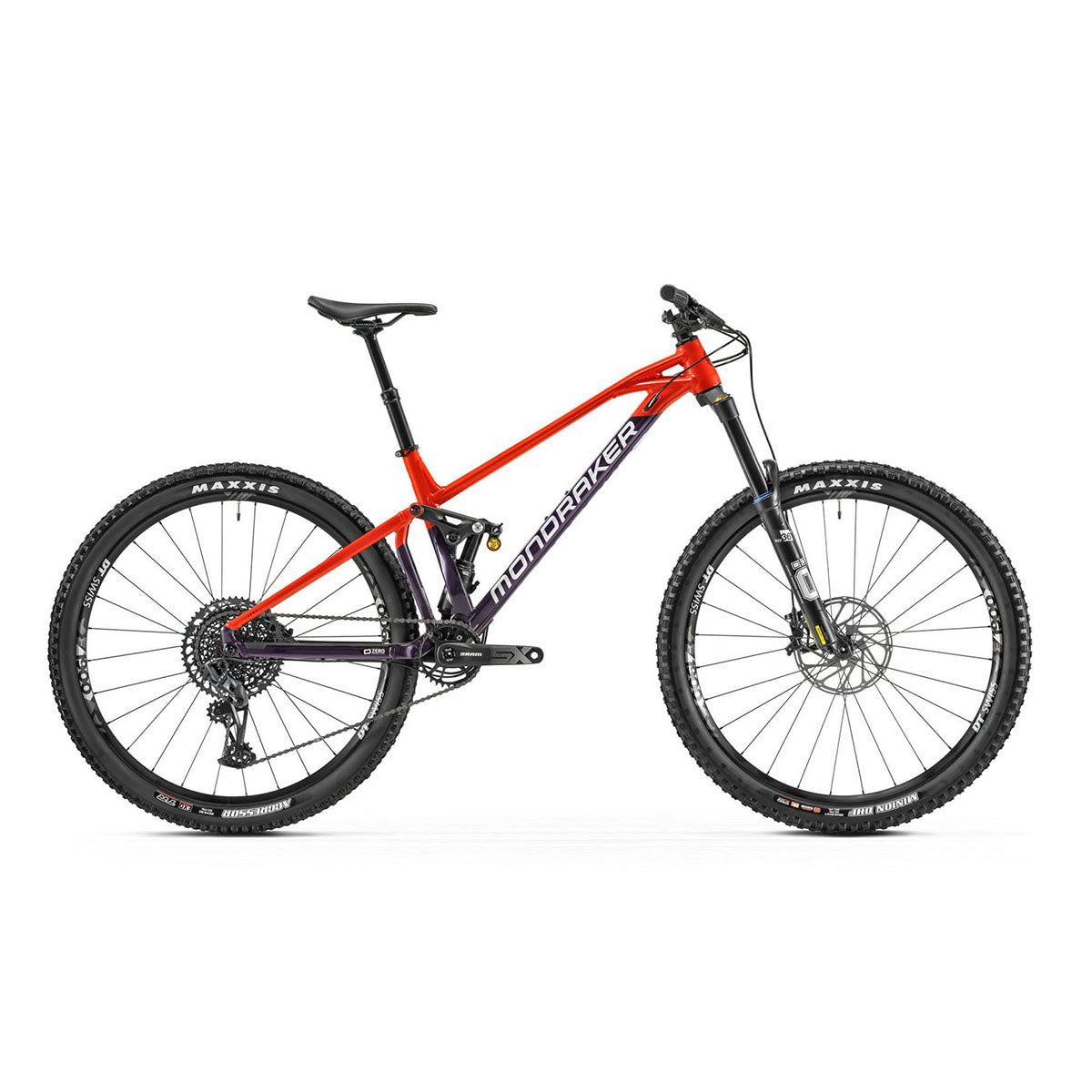

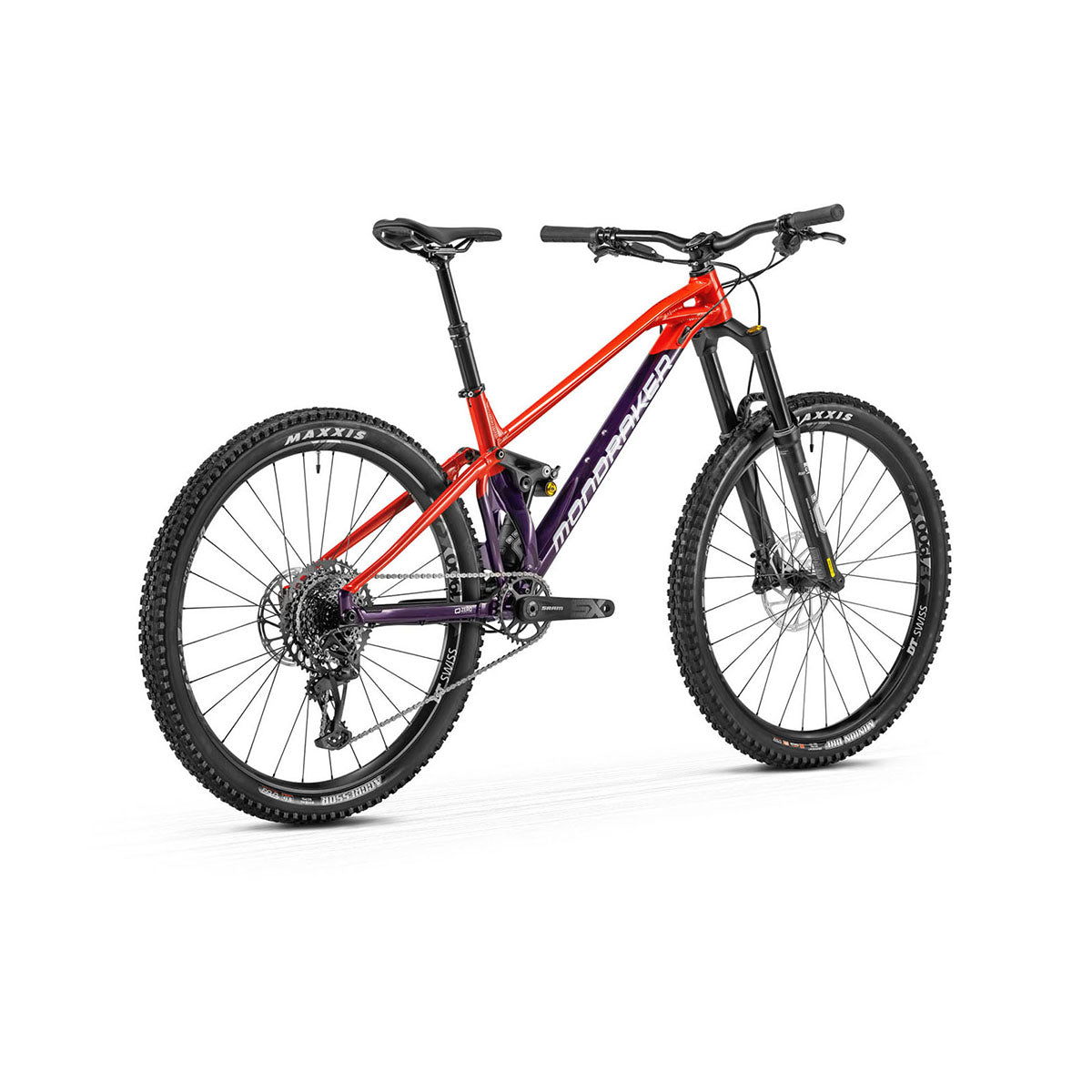

USED - Mondraker - FOXY R Bike - Deep Purple-Flame Red (ENDURO)

SKU: REF-MOND-B-Foxy-R-Purple22-M
$2,900.00 $5,999.00
Shipping calculated at checkout.

Size
Color: Deep Purple-Flame Red

NOTE: This used bike is sold as-is, without warranty, and all sales are final. Thank you for your understanding. For inquiries, please call us at 805-850-3200.


DESCRIPTION

Experience the Foxy R difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts enhanced performance and ultra-modern geometry.

Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.

Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.

Foxy R is loaded with more protection features such as sealed Enduro bearings, and performance features like dedicated 1X drivetrain, telescopic Seatpost internal routing, boost rear axle, and BSA bottom bracket for better traction and momentum. One-piece monoblock upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.

Foxy R sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

Size: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Deep Purple / Flame Red

SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME

6061 hydroformed Stealth Alloy Evo, one-piece Monoblock upper link, molded chainstay and down tube protection

SIZES

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

REAR SHOCK

Fox Float DPX2 LV EVOL Performance, 205x62.5mm. Settings: compression 3 positions lever, lowspeedrebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

SHOCK SETTINGS

Öhlins TTX Air, high-speed compression lever with climb mode, low-speed compression adjust, rebound adjust, trunnion mount, 205mm x 62.5mm

FORK

Öhlins RXF 36 M.2, TTX18 Twin Tube cartridge damper, ramp chamber, high-speed compression lever with climb mode, low-speed compression adjust, rebound adjust, 44mm offset, 160mm

HEADSET

ONOFF Saturn, sealed angular contact bearings

STEM

ONOFF Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp

HANDLEBAR

ONOFF Sulfur 1.0, double-butted 6061 alloy, 800mm width, 20mm rise, 9° backsweep, 5° upsweep, 31.8mm clamp diameter

GRIPS

ONOFF Diamond, 135mm length, single lock-on

SEATPOST

ONOFF Pija dropper, 31.6mm, Single bolt, 31.6mm, Single bolt Drop:
100mm (SM)
125mm (MD)
150mm (LG)
170mm (XL)

SADDLE

SDG Bel-Air 3.0, LPU foam, steel rails

FRONT BRAKE

SRAM G2 R, 4-piston, steel-backed organic pads, SRAM CenterLine 6-bolt one-piece rotors 200mm, SRAM G2 R, tool-free reach adjust

REAR BRAKE

SRAM G2 R, 4-piston, steel-backed organic pads, SRAM CenterLine 6-bolt one-piece rotor 180mm, SRAM G2 R, tool-free reach adjust

BRAKE LEVER

Sram G2 RS, SwingLink, tool-free reach adjust

RIMS

DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes

SPOKES

DT Swiss Champion, straightpull

FRONT HUB

DT Swiss 370, 110x15mm Boost

REAR HUB

148x12mm Boost with 18 tooth Ratchet LN freehub and HG driver

FRONT TIRE

Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.5" WT

REAR TIRE

Maxxis Aggressor, Dual Compound, EXO, TR, 60 TPI, folding bead, 29" x 2.3"

CRANKSET

SRAM SX Eagle DUB, Length: 170mm (SM/MD), 175mm (LG/XL)

RINGS

32T, CNC-machined alloy

BOTTOM BRACKET

355mm (21mm drop), SRAM DUB, sealed bearings, 73mm English/BSA threaded

PEDALS

-

CHAIN

435mm, None, SRAM SX Eagle, 32 tooth, steel, X-SYNC 2, direct mount, SRAM SX Eagle, 12-speed, with PowerLock

FRONT DERAILLEUR

-

REAR DERAILLEUR

SRAM NX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION

SHIFT LEVERS

SRAM SX Eagle, 12-speed, X-ACTUATION

CASSETTE

SRAM PG-1230, 11-50T

MOTOR

-

BATTERY

-

DISPLAY

-

DERAILLEUR HANGER

Mondraker M068

OTHERS

-

WEIGHT

-



GEOMETRY

MEASUREMENTS / GEOMETRY (Click on image to expand)

Mondraker Foxy 2021 Bike Geometry

Size

S

M

L

XL

A

Seat Tube Length

380 mm

420 mm

470 mm

510 mm

B

Top Tube Length

606 mm

629 mm

654 mm

676 mm

C

Bottom Bracket Drop

-21 mm

-21 mm

-21 mm

-21 mm

D

Bottom Bracket Height

355 mm

355 mm

355 mm

355 mm

E

Chainstay Length

435 mm

435 mm

435 mm

435 mm

F

Seat Tube Angle, Actual

71°

71°

71°

71°

G

Seat Tube Angle, Effective

76°

76°

76°

76°

H

Head Tube Angle

66°

66°

66°

66°

I

Fork Offset

44 mm

44 mm

44 mm

44 mm

J

Wheelbase

1193 mm

1222 mm

1248 mm

1274 mm

K

Head Tube Length

90 mm

100 mm

115 mm

130 mm

L

Reach

450 mm

475 mm

495 mm

515 mm

M

Stack

606 mm

615 mm

630 mm

643 mm
