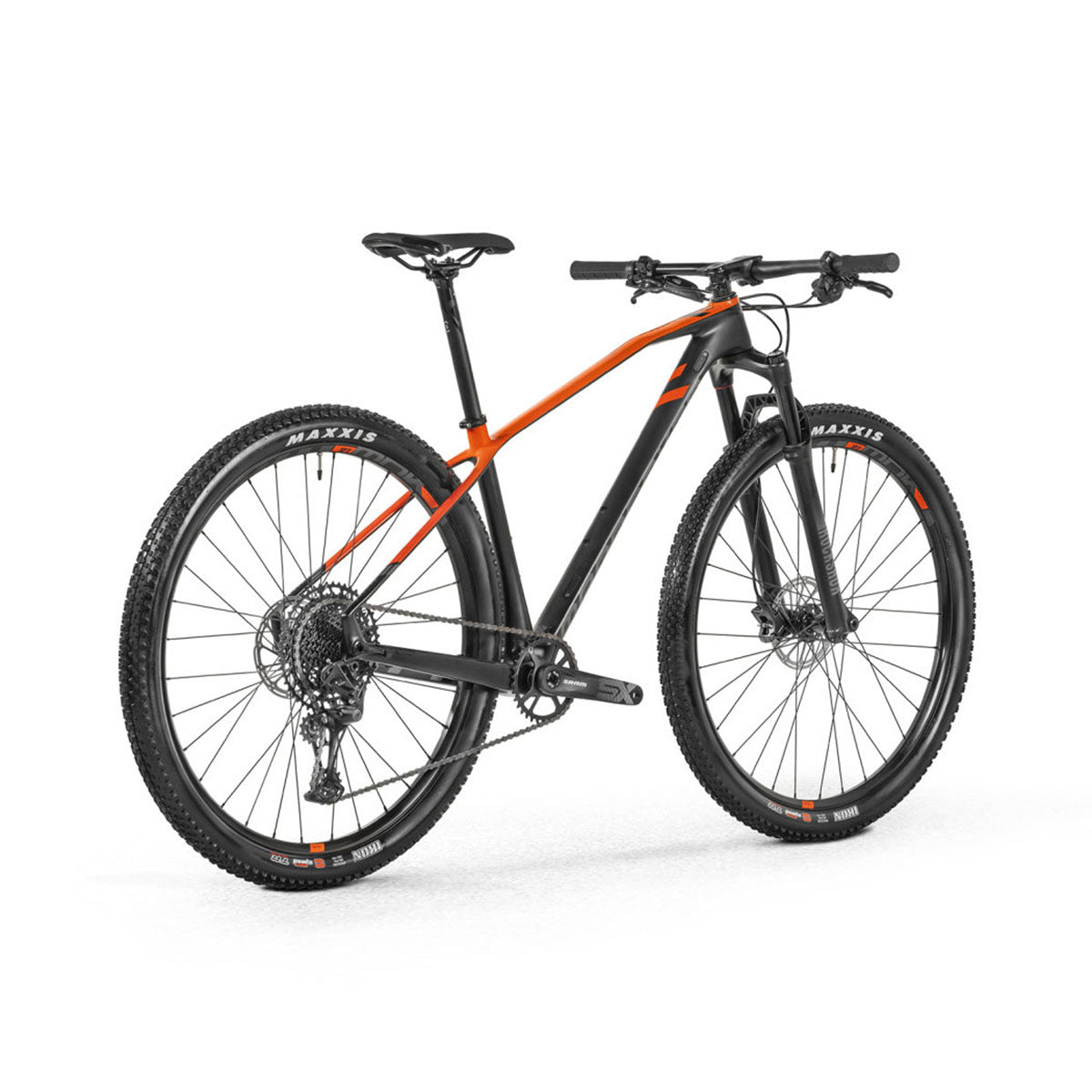

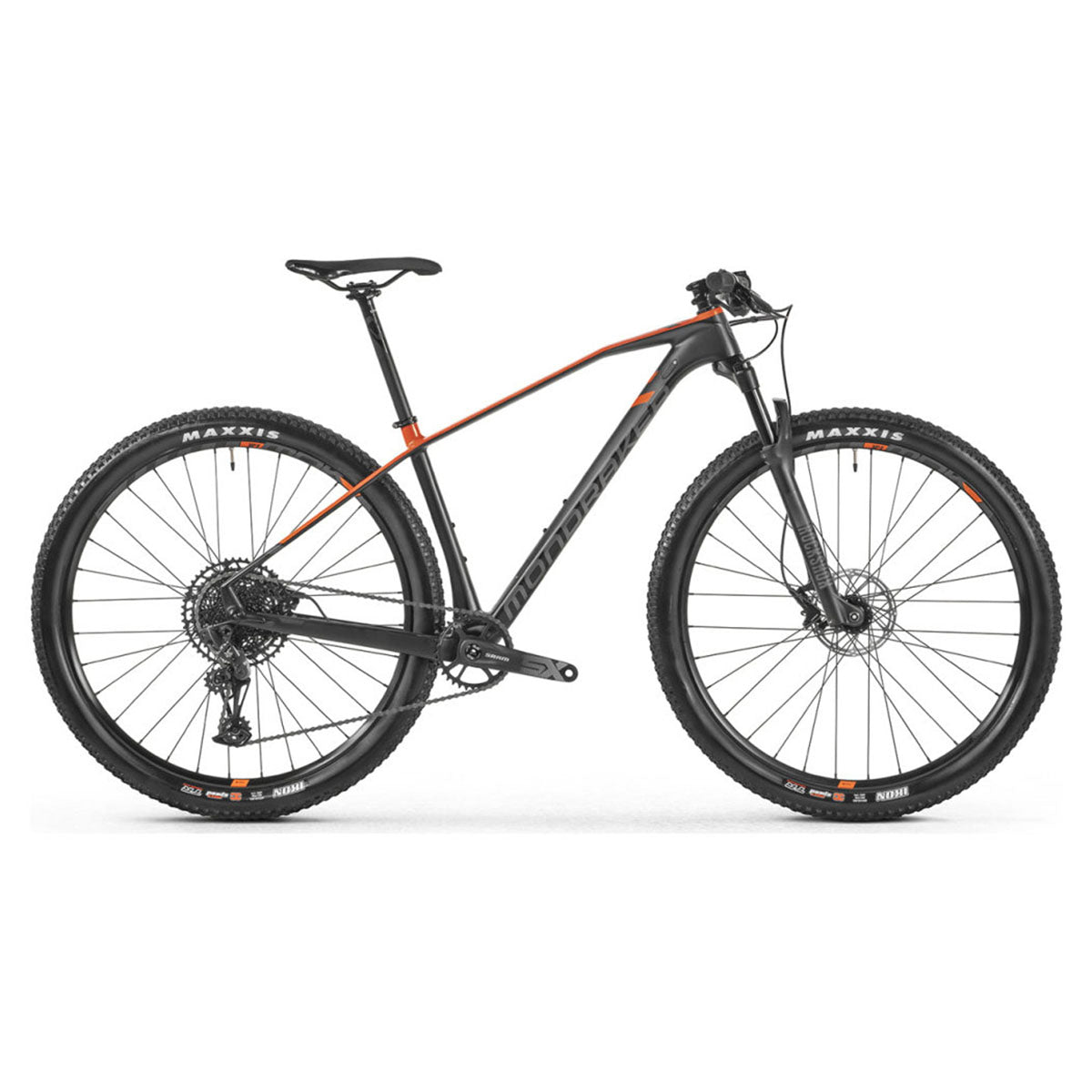

Mondraker - CHRONO CARBON Bike in Carbon / Orange (XC PRO)
Mondraker - CHRONO CARBON Bike in Carbon / Orange (XC PRO) - Carbon / Orange / Nimbus Grey / S | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Couldn't load pickup availability
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Experience the Chrono Carbon difference in Cross-country rides and marathons! These stylish and modern XC bikes with race geometry, are also great for urban city riders.
Extending the successful features from Mondraker’s Podium Carbon series, Chrono Carbon features an extremely lightweight design of top-end Podium Carbon in a new Stealth Carbon frame.
XC Racers will love the safety and confidence offered by Mondraker’s proprietary forward geometry design and Flatstays seat stays. Forward geometry helps with improved handling, overall control, uphill precision, and stability in tough and technical terrains. Flatstays seat stays cancel out all riding vibrations to improve rider comfort.
The compact and lighter stealth carbon frame and HHG internal cable routing help with resistance and mobility for better speed and performance. Mondraker’s proprietary Stealth carbon construction uses specific positioning and direction of carbon fibers to optimize benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.
HHG Internal Cable Routing helps with a minimalistic, clean design. Chrono Carbon XC bikes are race-ready with a full carbon frame, boost rear axle and BSA bottom bracket for enhanced traction and momentum. Chrono Carbon XC has a high-performance suspension system that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails.
Chrono Carbon XC Pro Bike sports high-performance rear derailleurs and wide 29er, tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
Sizes: S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Colors: Matte Carbon UD / Gloss Orange / Nimbus Grey
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, Comfort Flat chainstays (Flatstays) design |
|
SIZES |
S: 395mm / M: 430mm / L: 470mm / XL: 520mm |
|
REAR SHOCK |
- |
|
SHOCK SETTINGS |
- |
|
FORK |
RockShox Judy Gold RL 29, 100mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 51mm. Settings: Onelock 2 pos remote compression (open/ lock), rebound, air preload |
|
HEADSET |
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45° |
|
STEM |
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5°, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm |
|
HANDLEBAR |
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9° backsweep, 0° upsweep, 31.8mm barbore |
|
GRIPS |
Onoff Twin, 1lock-on, 135mm |
|
SEATPOST |
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm |
|
SADDLE |
Mondraker XC Series, steel rail |
|
FRONT BRAKE |
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
REAR BRAKE |
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
BRAKE LEVER |
Sram Level, tooled reach adjust, lever pivot bushings |
|
RIMS |
MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes |
|
SPOKES |
CN round stainless steel |
|
FRONT HUB |
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
|
REAR HUB |
Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts |
|
FRONT TIRE |
Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead |
|
REAR TIRE |
Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead |
|
CRANKSET |
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm |
|
RINGS |
34T, steel, X-Sync 2 |
|
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 73mm |
|
PEDALS |
- |
|
CHAIN |
Sram SX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
|
CASSETTE |
Sram PG-1230, 11-50T, 12s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
- |
|
WEIGHT |
- |
|
|
|
GEOMETRY
MEASUREMENTS / GEOMETRY
(Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
395 mm |
430 mm |
470 mm |
520 mm |
|
B |
Top Tube Length |
590 mm |
610 mm |
630 mm |
650 mm |
|
C |
Bottom Bracket Drop |
-65 mm |
-65 mm |
-65 mm |
-65 mm |
|
D |
Bottom Bracket Height |
305 mm |
305 mm |
305 mm |
305 mm |
|
E |
Chainstay Length |
430 mm |
430 mm |
430 mm |
430 mm |
|
F |
Seat Tube Angle, Actual |
72° |
72° |
72° |
72° |
|
G |
Seat Tube Angle, Effective |
73.5° |
73.5° |
73.5° |
73.5° |
|
H |
Head Tube Angle |
70° |
70° |
70° |
70° |
|
I |
Fork Offset |
51mm |
51mm |
51mm |
51mm |
|
J |
Wheelbase |
1086 mm |
1106 mm |
1127 mm |
1148 mm |
|
K |
Head Tube Length |
85 mm |
90 mm |
100 mm |
115 mm |
|
L |
Reach |
411 mm |
430 mm |
447 mm |
463 mm |
|
M |
Stack |
605 mm |
610 mm |
619 mm |
632 mm |
