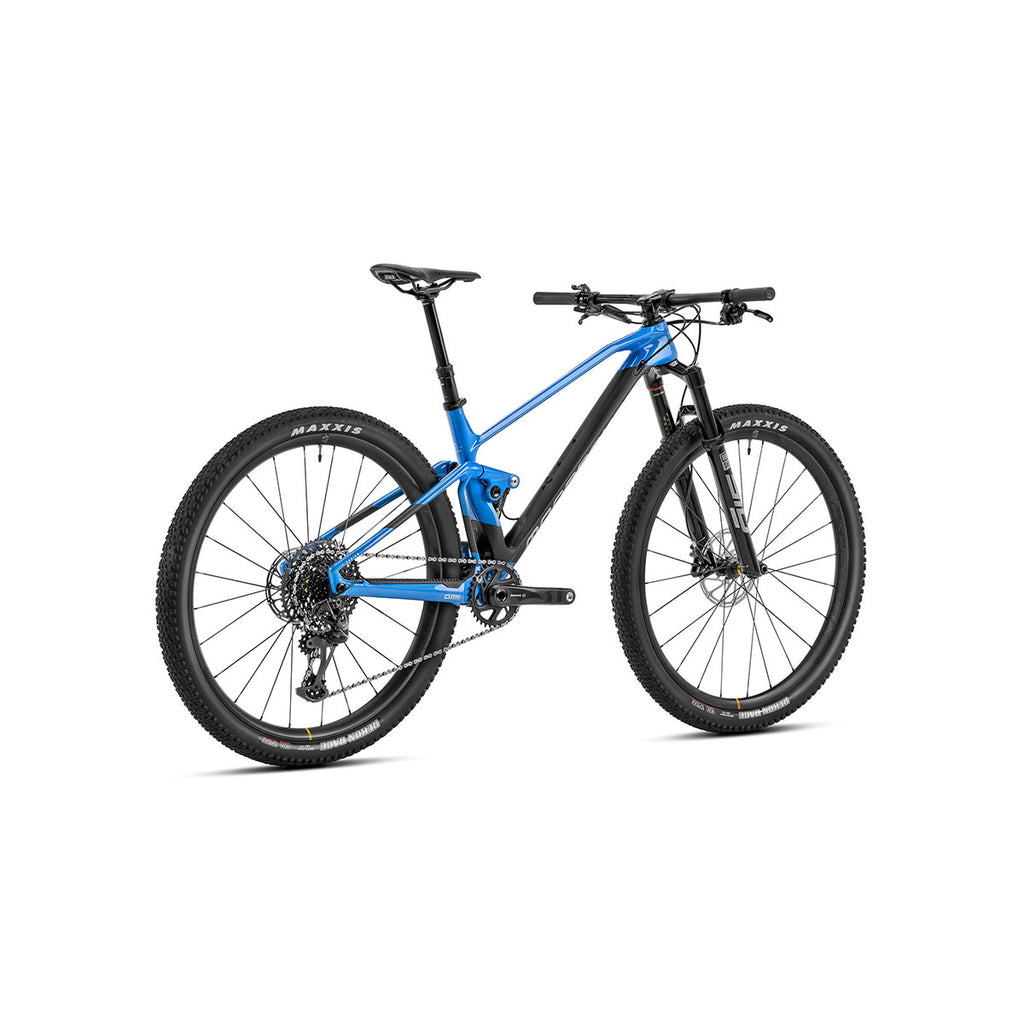

Mondraker - F-PODIUM CARBON DC R Bike - Blue/Carbon/Silver (XC RACE)
Mondraker - F-PODIUM CARBON DC R Bike - Blue/Carbon/Silver (XC RACE) - S / Blue-Carbon-Silver | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Sizes: S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss Marlin Blue / Matte Carbon / Racing Silver
Experience the ultimate excellence and performance in Cross-country, Marathons, and fast trails! F-Podium Carbon design has everything going on for high-speed racers - extraordinary control, traction, and uncompromised stability!
F-Podium Carbon DC R uses the top of the line automotive and aerospace-grade carbon technology to design lightweight, fast and superior, race-ready bikes. By combining incredible pedaling efficiency with a high-performance suspension system, F-Podium has become the new definition of XC bikes.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This XCO optimized suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Extreme XC racers will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, F-Podium Carbon becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.
HHG Internal Cable Routing helps with a minimalistic, clean design. F-Podium goes above and beyond with more exclusive features like dedicated 1x drivetrain design, shock mudguards, and boost rear axle to soak up vibrations and noise for quieter rides and threaded bottom bracket for improved brake efficiency and noise control.
F-Podium Carbon DC R sports an enhanced suspension with optimized system layout, kinematics, and internal and exclusive customized shocks. One-piece full-carbon upper linkage offers better lateral and torsional stiffness to reduce lateral stress on the shock action. Post mount rear brake design improves braking efficiency and minimizes vibrations.
F-Podium bikes have high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. XC riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 115mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount. |
|
SIZES |
S: 390mm / M: 420mm / L: 470mm / XL: 510mm |
|
REAR SHOCK |
Rockshox SID Luxe Ultimate RLR DebonAir, 185x50mm. Settings: OneLoc, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
|
SHOCK SETTINGS |
Light compression, medium rebound, Lockout 430, 1 Token |
|
FORK |
Rockshox SID Ultimate RL 29, 120mm, Charger Race day, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: OneLoc, Low-speed rebound, air preload |
| FORK REMOTE | RockShox OneLoc |
|
HEADSET |
Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom |
|
STEM |
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm |
|
HANDLEBAR |
ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
|
GRIPS |
ONOFF Desert, 1lock-on, 135mm |
|
SEATPOST |
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
|
SADDLE |
Fizik Antares R7 |
|
FRONT BRAKE |
Sram Level TL, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
REAR BRAKE |
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
|
BRAKE LEVER |
Sram Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings |
|
RIMS |
Mavic Crossmax Carbon XL R 29, 30mm internal width, hookless, tubeless ready, 24 spokes |
|
SPOKES |
24 straight-pull double butted spokes |
|
FRONT HUB |
Infinity hub, Boost 15x110mm, IS 6 bolts |
|
REAR HUB |
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts |
|
FRONT TIRE |
Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead |
|
REAR TIRE |
Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead |
|
CRANKSET |
Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm, M/L/XL size: 175mm |
|
RINGS |
34T, CNC-machined alloy, X-SYNC 2 |
|
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 73mm |
|
PEDALS |
- |
|
CHAIN |
Sram SX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
|
CASSETTE |
Sram XG-1275, 10-50T, 12s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Sram UDH |
|
OTHERS |
- |
|
WEIGHT |
11.8 kg |
GEOMETRY
MEASUREMENTS / GEOMETRY(Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
390 mm |
420 mm |
470 mm |
510 mm |
|
B |
Top Tube Length |
583 mm |
603mm |
629 mm |
654 mm |
|
C |
Bottom Bracket Drop |
-31 mm |
-31 mm |
-31 mm |
-31 mm |
|
D |
Bottom Bracket Height |
337 mm |
337 mm |
337 mm |
337 mm |
|
E |
Chainstay Length |
432 mm |
432 mm |
432 mm |
432 mm |
|
F |
Seat Tube Angle, Actual |
70.8° |
70.8° |
70.8° |
70.8° |
|
G |
Seat Tube Angle, Effective |
75.1° |
75.1° |
75.1° |
75.1° |
|
H |
Head Tube Angle |
66.8° |
66.8° |
66.8° |
66.8° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1146 mm |
1167 mm |
1191 mm |
1217 mm |
|
K |
Head Tube Length |
85 mm |
90 mm |
100 mm |
115 mm |
|
L |
Reach |
430 mm |
450 mm |
470 mm |
490 mm |
|
M |
Stack |
577 mm |
582 mm |
591 mm |
605 mm |
RESOURCES
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
