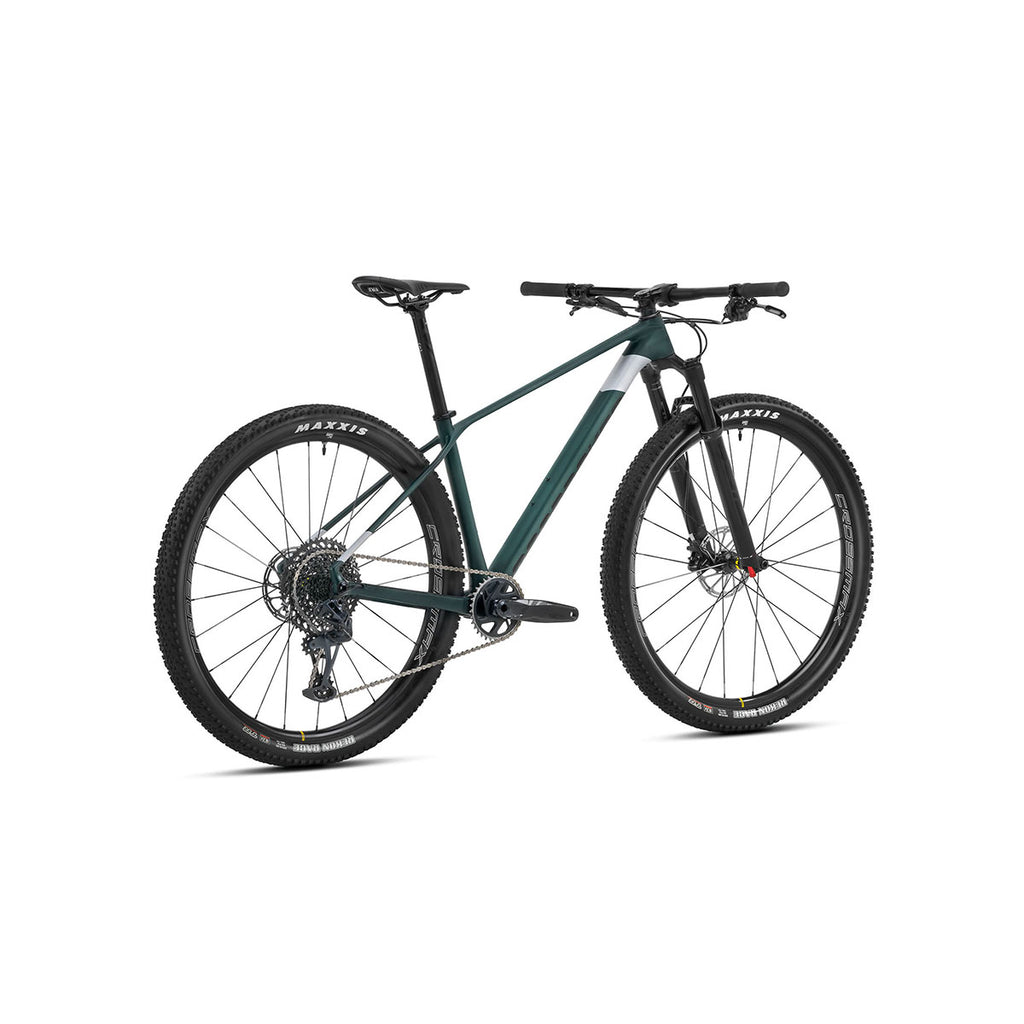

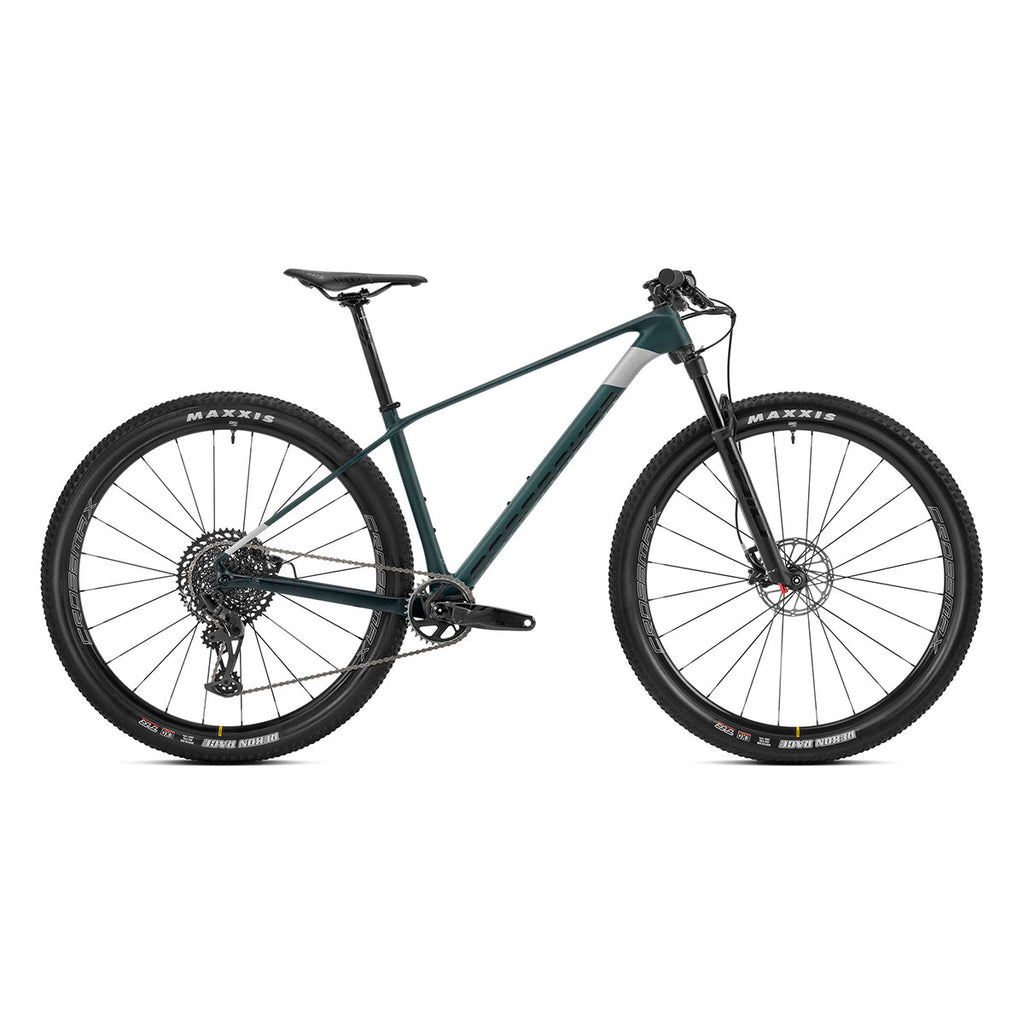

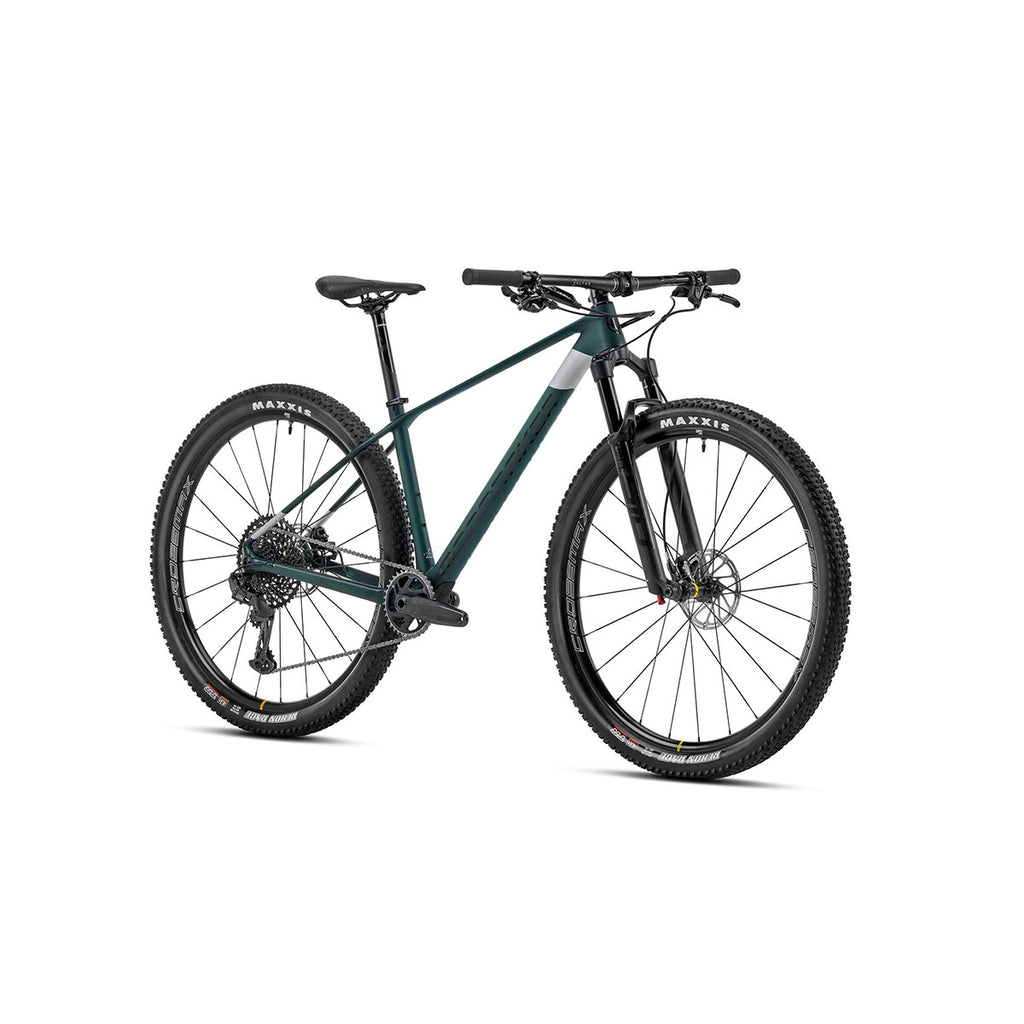

Mondraker - PODIUM CARBON Bike - Green/Silver (XC RACE)

SKU: MOND-B-Pod-Carb-Green23-S

$5,299.00

Shipping calculated at checkout.

Size

S M L XL

Color: Green-Silver

Mondraker - PODIUM CARBON Bike - Green/Silver (XC RACE)

Product variants

NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.

DESCRIPTION

Size: S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Matte Translucent Green Carbon / Racing Silver

Experience the ultimate excellence and performance in Cross-country, Marathons, and fast trails! Podium Carbon design has everything going on for high-speed racers - lightweight, extraordinary control, traction, and uncompromised stability!

Podium Carbon uses the top of the line automotive and aerospace-grade carbon technology to design lightweight, fast and superior, race-ready bikes. By combining incredible pedaling efficiency with a high-performance suspension system, F-Podium has become the new definition of XC bikes.

Extreme XC racers will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.

The proprietary stealth carbon airframe helps with resistance and mobility for better speed and performance. Stealth Air design delivers aero-style profile, maximum stiffness, lightest weight, and superior compliance ratio, extremely important for mtb riders. With the increased stiffness and improved pedaling efficiency, Podium Carbon becomes the bike of choice for technical climbs. Stealth air construction optimizes benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.

Podium Carbon sports an enhanced suspension that helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. HHG Internal Cable Routing helps with a minimalistic, clean design.

Podium Carbon bikes have high-performance rear derailleurs, threaded bottom bracket, boost rear axle, dedicated 1X drivetrain, and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. XC riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.

TECH SPECS

COMPONENTS / TECHNICAL SPECIFICATIONS

FRAME	Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible
SIZES	S: 390mm / M: 420mm / L: 470mm / XL: 510mm
REAR SHOCK	-
SHOCK SETTINGS	-
FORK	Rockshox SID SL Base RL 29, 100mm, Charger, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload
FORK REMOTE	RockShox OneLoc
HEADSET	ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
STEM	MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm
HANDLEBAR	ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
GRIPS	ONOFF Twin, 1lock-on, 135mm
SEATPOST	ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
SADDLE	Fizik Antares R7
FRONT BRAKE	Sram Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
REAR BRAKE	Sram Level TL, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
BRAKE LEVER	Sram Level TL, Direct Link actuation, tooled reach adjust, lever pivot bushings
RIMS	Mavic Crossmax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
SPOKES	Mavic straight-pull double butted, contactless lacing
FRONT HUB	Mavic, Boost 15x110mm, IS 6 bolts
REAR HUB	Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub
FRONT TIRE	Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
REAR TIRE	Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
CRANKSET	Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
RINGS	34T, CNC-machined alloy, X-SYNC 2
BOTTOM BRACKET	Sram DUB BSA, sealed bearings, 73mm
PEDALS	-
CHAIN	Sram NX Eagle, 12s, Powerlock
FRONT DERAILLEUR	-
REAR DERAILLEUR	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS	Sram Trigger GX Eagle, 12s, X-Actuation 1:1
CASSETTE	Sram XG-1275, 10-50T, 12s
MOTOR	-
BATTERY	-
DISPLAY	-
DERAILLEUR HANGER	Sram UDH
OTHERS	-
WEIGHT	9.7kg

MEASUREMENTS

MEASUREMENTS / GEOMETRY (Click on image to zoom)

	Size	S	M	L	XL
A	Seat Tube Length	390 mm	420 mm	470 mm	510 mm
B	Top Tube Length	590 mm	611mm	632 mm	650 mm
C	Bottom Bracket Drop	-65 mm	-65 mm	-65 mm	-65 mm
D	Bottom Bracket Height	300 mm	300 mm	300 mm	300 mm
E	Chainstay Legth	430 mm	430 mm	430 mm	430 mm
F	Seat Tube Angle, Actual	73°	73°	73°	73°
G	Seat Tube Angle, Effective	74.5°	74.5°	74.5°	74.5°
H	Head Tube Angle	68.5°	68.5°	68.5°	68.5°
I	Fork Offset	44 mm	44 mm	44 mm	44 mm
J	Wheelbase	1107 mm	1128 mm	1150 mm	1170 mm
K	Head Tube Length	85 mm	90 mm	100 mm	115 mm
L	Reach	425 mm	444 mm	463 mm	477 mm
M	Stack	598 mm	602 mm	611 mm	625 mm

RESOURCESSIZE GUIDE
