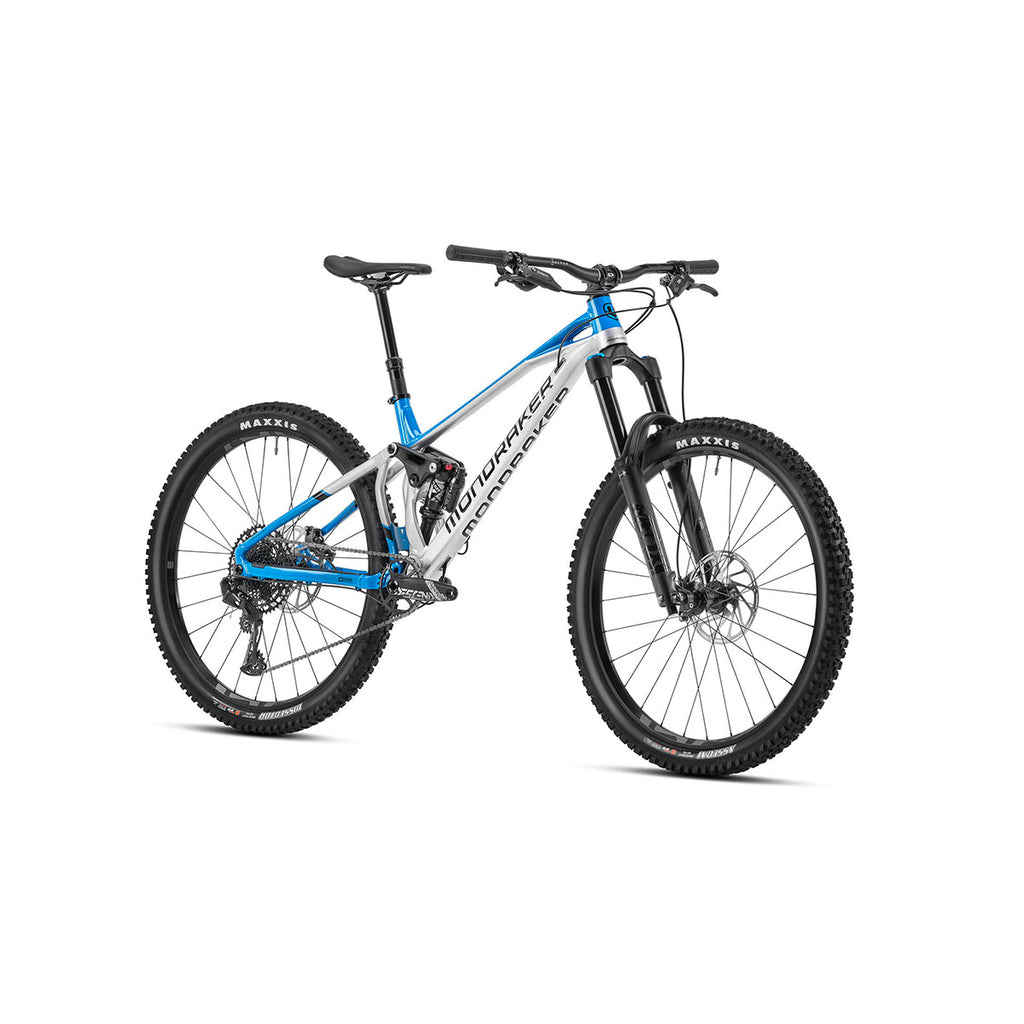

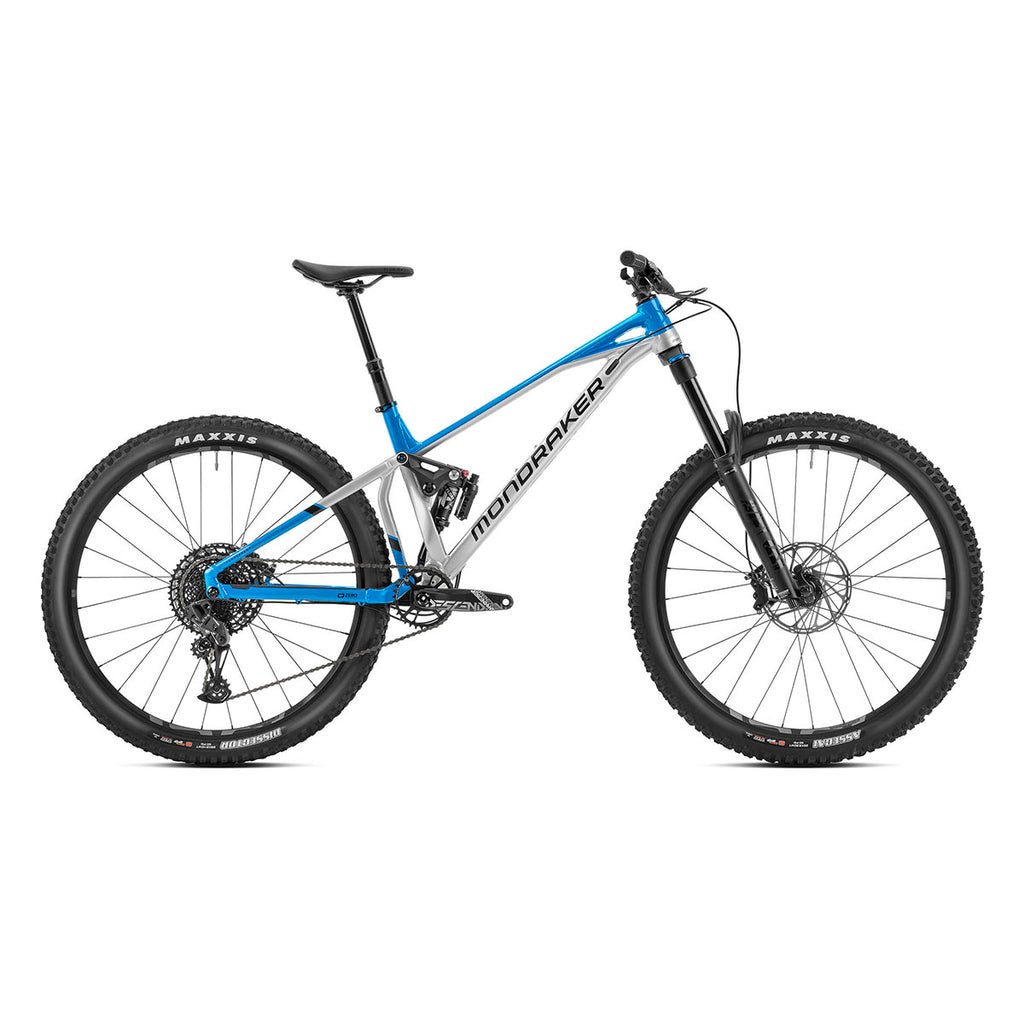

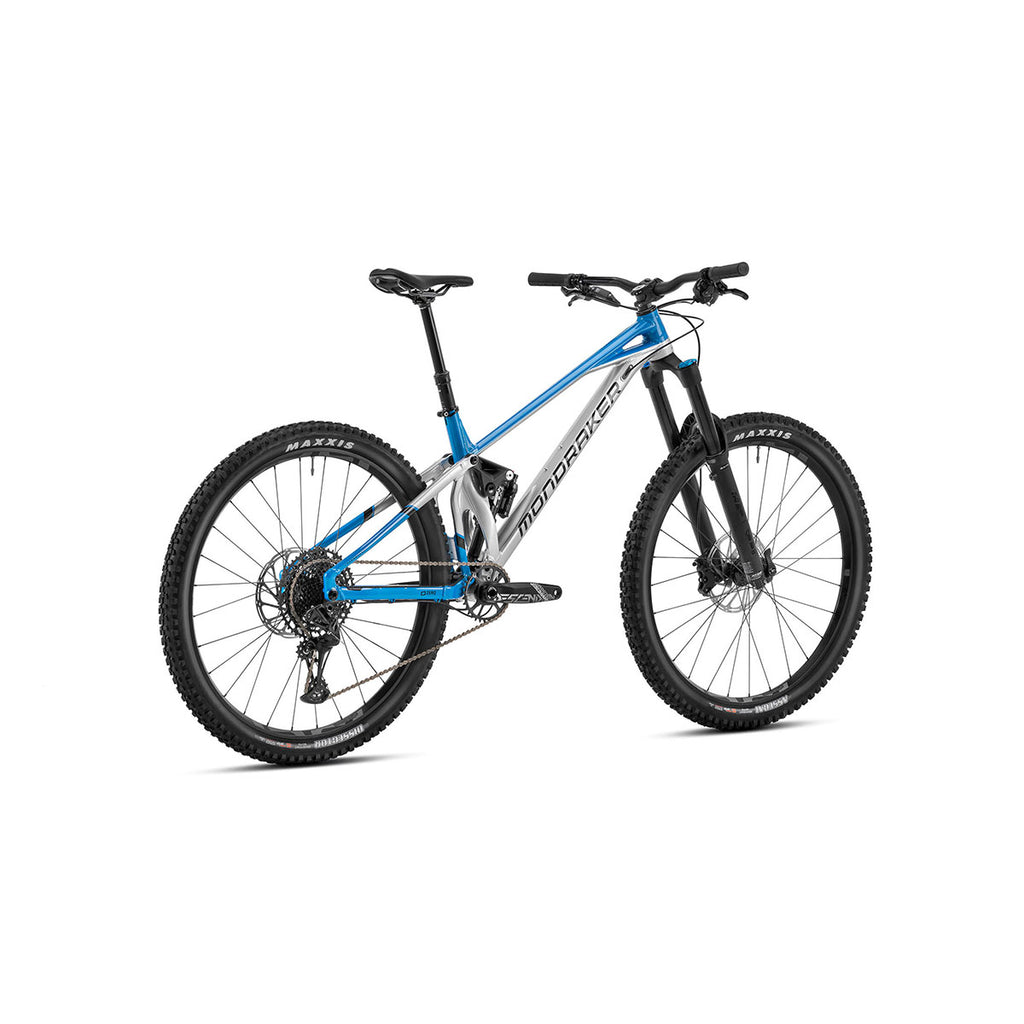

Mondraker - SUPERFOXY Bike - Silver/Blue (SUPER ENDURO)
Mondraker - SUPERFOXY Bike - Silver/Blue (SUPER ENDURO) - S / Silver-Blue | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss Racing Silver / Marlin Blue
Experience the Superfoxy difference in enduro, trail, uphill, and downhill! This top-end mountain bike boasts more travel and a sleeky frame for the gnarliest, hardcore trails. The 2023 model the Superfoxy gets a tuned Fox 38 fork and a Fox Float X shock to make the bike shine in any situation.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Superfoxy 2021 features telescopic Seatpost internal routing and enduro sealed bearings to withstand the rigors of demanding trails. Superfoxy is loaded with features such as super-boost rear axle and dedicated 1X drivetrain for better traction and momentum.
Superfoxy goes above and beyond with more exclusive features like BSA bottom bracket for improved brake efficiency and noise control. One-piece monoblock upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.
Superfoxy sports high-performance rear derailleurs and wide 29” tubeless-ready tires, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel,Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered headtube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing,Max. capacity sealed bearings, ISCG 05 |
|
SIZES |
S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
|
REAR SHOCK |
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
|
SHOCK SETTINGS |
Medium compression, medium rebound, air volume spacer 0.2 |
|
FORK |
Fox 38 29 Float GRIP RHYTHM, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
|
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45° |
|
STEM |
Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
|
HANDLEBAR |
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep,31.8mm barbore |
|
GRIPS |
Onoff Twin, 1lock-on, 135mm |
|
SEATPOST |
Onoff Pija dropper internal, diameter 31.6mm, S size: 337x100mm, M size 387x125mm, L size:425x150mm, XL size: 465x170mm |
|
SADDLE |
SDG BEL-AIR 3.0, LPU foam, steel rails |
|
FRONT BRAKE |
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
REAR BRAKE |
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
|
BRAKE LEVER |
Sram DB8, tool-free reach adjust |
|
RIMS |
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
|
SPOKES |
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
|
FRONT HUB |
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
|
REAR HUB |
*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub |
|
FRONT TIRE |
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
|
REAR TIRE |
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
|
CRANKSET |
Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
|
RINGS |
32T, CNC-machined alloy, X-SYNC 2 |
|
BOTTOM BRACKET |
Sram DUB BSA, sealed bearings, 73mm |
|
PEDALS |
- |
|
CHAIN |
Sram SX Eagle, 12s, Powerlock |
|
FRONT DERAILLEUR |
- |
|
REAR DERAILLEUR |
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
|
SHIFT LEVERS |
Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
|
CASSETTE |
Sram PG-1210, 11-50T, 12s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
Mondraker M068 |
|
OTHERS |
- |
|
WEIGHT |
17.2kg |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
380 mm |
420 mm |
470 mm |
510 mm |
|
B |
Top Tube Length |
605 mm |
625 mm |
650 mm |
670 mm |
|
C |
Bottom Bracket Drop |
-20 mm |
-20 mm |
-20 mm |
-20 mm |
|
D |
Bottom Bracket Height |
350 mm |
350 mm |
350 mm |
350 mm |
|
E |
Chainstay Length |
445 mm |
445 mm |
445 mm |
445 mm |
|
F |
Seat Tube Angle, Actual |
71° |
71° |
71° |
71° |
|
G |
Seat Tube Angle, Effective |
76° |
76° |
76° |
76° |
|
H |
Head Tube Angle |
65° |
65° |
65° |
65° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1224 mm |
1245 mm |
1273 mm |
1293 mm |
|
K |
Head Tube Length |
100 mm |
110 mm |
130 mm |
130 mm |
|
L |
Reach |
450 mm |
470 mm |
490 mm |
510 mm |
|
M |
Stack |
621 mm |
621 mm |
639 mm |
639 mm |
RESOURCES
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
