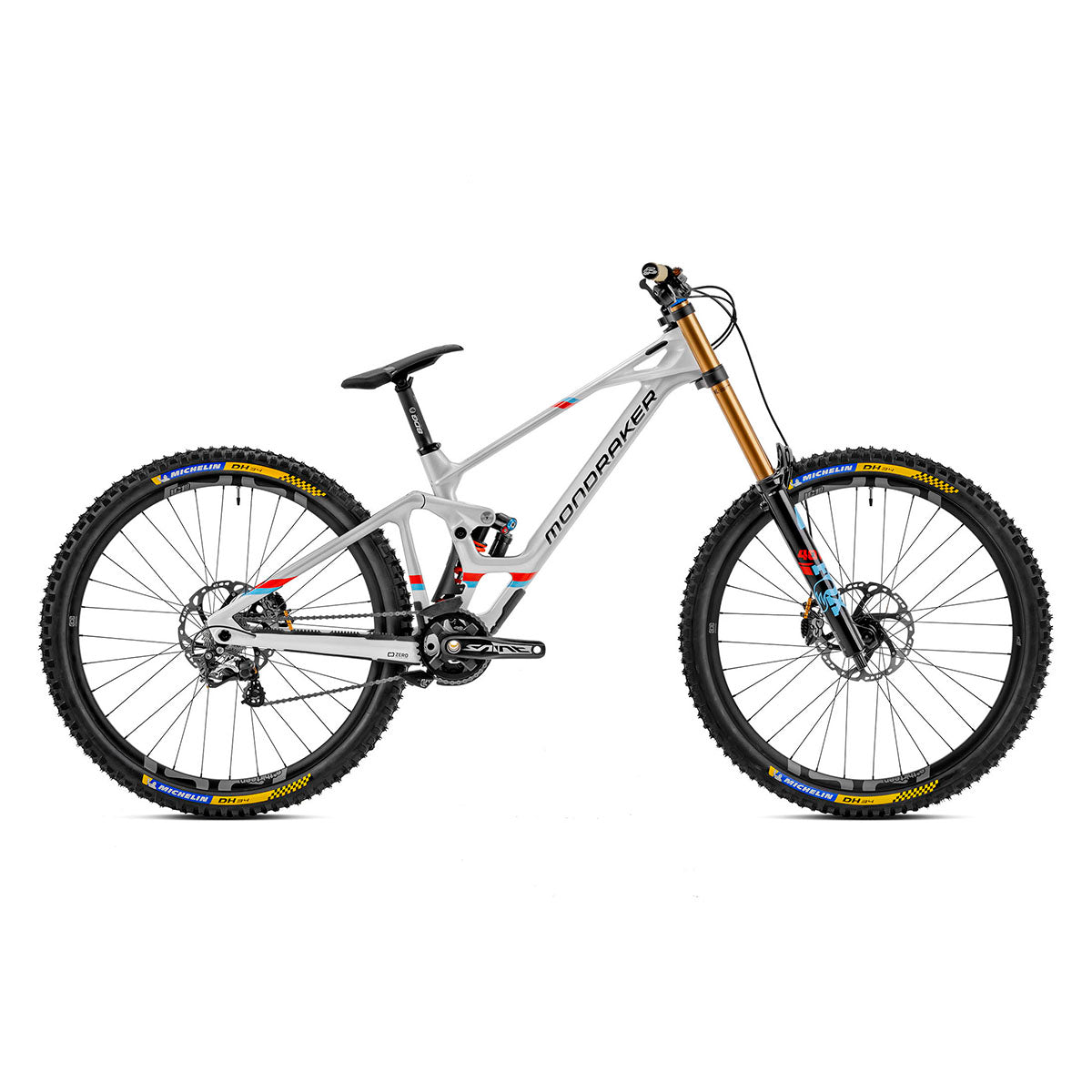

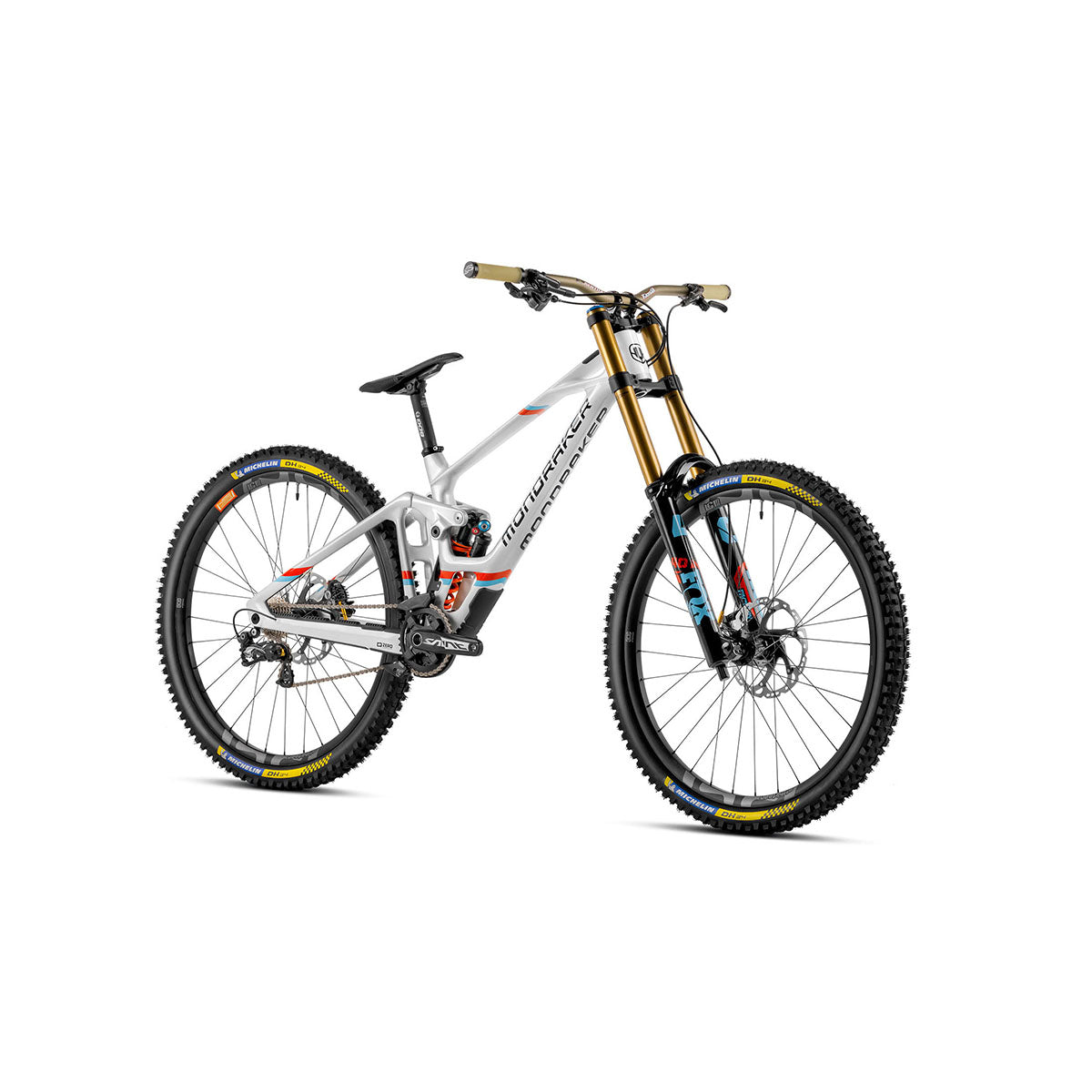

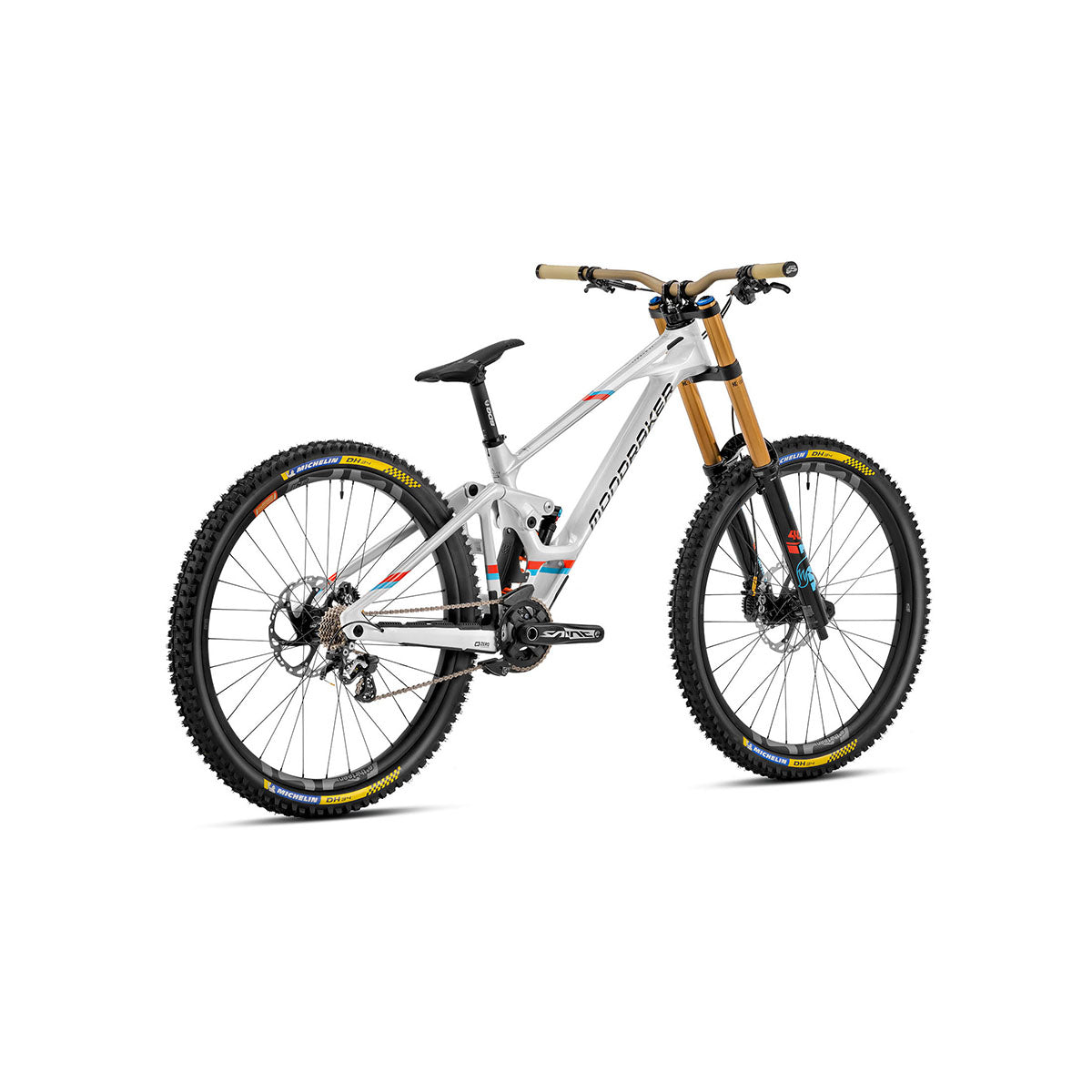

Mondraker - SUMMUM CARBON RR MX Bike - Silver/White (DOWNHILL)
Mondraker - SUMMUM CARBON RR MX Bike - Silver/White (DOWNHILL) - S / Silver-White | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Sizes: S: 400mm / M: 400mm / L: 400mm / XL: 400mm
Colors: Gloss Racing Silver / Dirty White
Summum is Mondraker’s flagship bike, that boasts a world championship-winning design for ultimate downhill rides! Summum Carbon RR uses HHG Internal Cable Routing for a minimalistic, clean design. This MX option has a 29" front wheel and 27.5" rear wheel for better traction on DH track. Non MX wheel option is available with 29" front and rear wheel.
Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
Downhill riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The compact and lighter stealth carbon frame and HHG internal cable routing help with resistance and mobility for better speed and performance. Mondraker’s proprietary Stealth carbon construction uses specific positioning and direction of carbon fibers to optimize benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.
Summum Carbon RR sports high-performance front and rear derailleurs, for ultimate precision and grip through uneven and rough trails. Extreme riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes. Summum is loaded with additional features like dual raw enduro bearings, super-boost rear axle, and hydroformed tubing for traction and control.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual raw Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included (EU Only) |
|
SIZES |
S: 400mm / M: 400mm / L: 400mm / XL: 400mm |
|
REAR SHOCK |
Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings |
|
SHOCK SETTINGS |
ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs |
|
FORK |
Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload |
|
HEADSET |
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45°x45° ACB sealed bearings, geometry kit cups, external diameter 56mm |
|
STEM |
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy,2x6mm spacer |
|
HANDLEBAR |
Renthal Fatbar series 7 alloy, rise: 30mm, width: 800mm, 7° backsweep, 5° upsweep, 31.8mm barbore |
|
GRIPS |
Renthal, double lock-on, kevlar compound, 130mm |
|
SEATPOST |
SDG Micro I-Beam SP-951 Alloy, diameter 31.6mm, length 300mm, micro-adjustment |
|
SADDLE |
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides |
|
FRONT BRAKE |
Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler |
|
REAR BRAKE |
Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler |
|
BRAKE LEVER |
Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust |
|
RIMS |
e*thirteen LG1 Race Carbon, IW30 29” Hookless, World Cup carbon fiber, 30mm internal width, tubeless ready, 32 spokes |
|
SPOKES |
e*thirteen custom Hive triple-butted black alloy, alloy nipples, nipple washers |
|
FRONT HUB |
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
|
REAR HUB |
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
|
FRONT TIRE |
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead |
|
REAR TIRE |
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing,wire bead |
|
CRANKSET |
Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm |
|
RINGS |
34T, aluminium, BCD 104 |
|
BOTTOM BRACKET |
Shimano 83mm |
|
PEDALS |
- |
|
CHAIN |
Shimano HG95, 10s |
|
FRONT DERAILLEUR |
E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider |
|
REAR DERAILLEUR |
Shimano Saint RD-M820-SS, 10s, Shadow+, short cage |
|
SHIFT LEVERS |
Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release |
|
CASSETTE |
Shimano CS-HG500-10, 11-25T, 10s |
|
MOTOR |
- |
|
BATTERY |
- |
|
DISPLAY |
- |
|
DERAILLEUR HANGER |
- |
|
OTHERS |
*Geometry kit included: +-1° / +-2° headset cups |
|
WEIGHT |
16.7 kg |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
400 mm |
400 mm |
400 mm |
400 mm |
|
B |
Top Tube Length |
577 mm |
596 mm |
622 mm |
647 mm |
|
C |
Bottom Bracket Drop |
0mm |
0mm |
0mm |
0mm |
|
D |
Bottom Bracket Height |
350 mm |
350 mm |
350 mm |
350 mm |
|
E |
Chainstay Length |
445/450/455 mm |
445/450/455 mm |
445/450/455 mm |
445/450/455 mm |
|
F |
Seat Tube Angle, Actual |
69° |
69° |
69° |
69° |
|
G |
Seat Tube Angle, Effective |
77° |
77° |
77° |
77° |
|
H |
Head Tube Angle |
62.5° |
63° |
63° |
63° |
|
I |
Fork Offset |
56 mm |
56 mm |
56 mm |
56 mm |
|
J |
Wheelbase |
1260 mm |
1270 mm |
1295 mm |
1320 mm |
|
K |
Head Tube Length |
110 mm |
110 mm |
112 mm |
112 mm |
|
L |
Reach |
427 mm |
445 mm |
470 mm |
495 mm |
|
M |
Stack |
633 mm |
633 mm |
633 mm |
633 mm |
RESOURCES
SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
