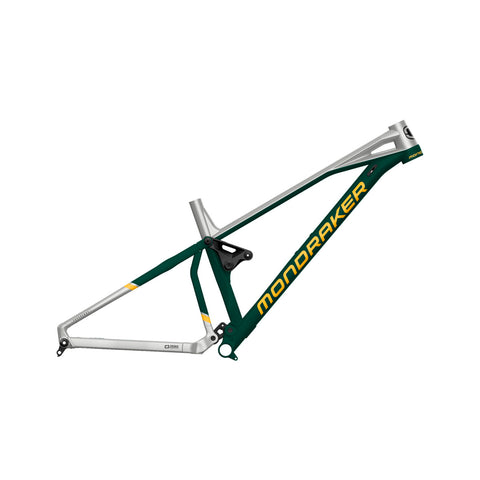

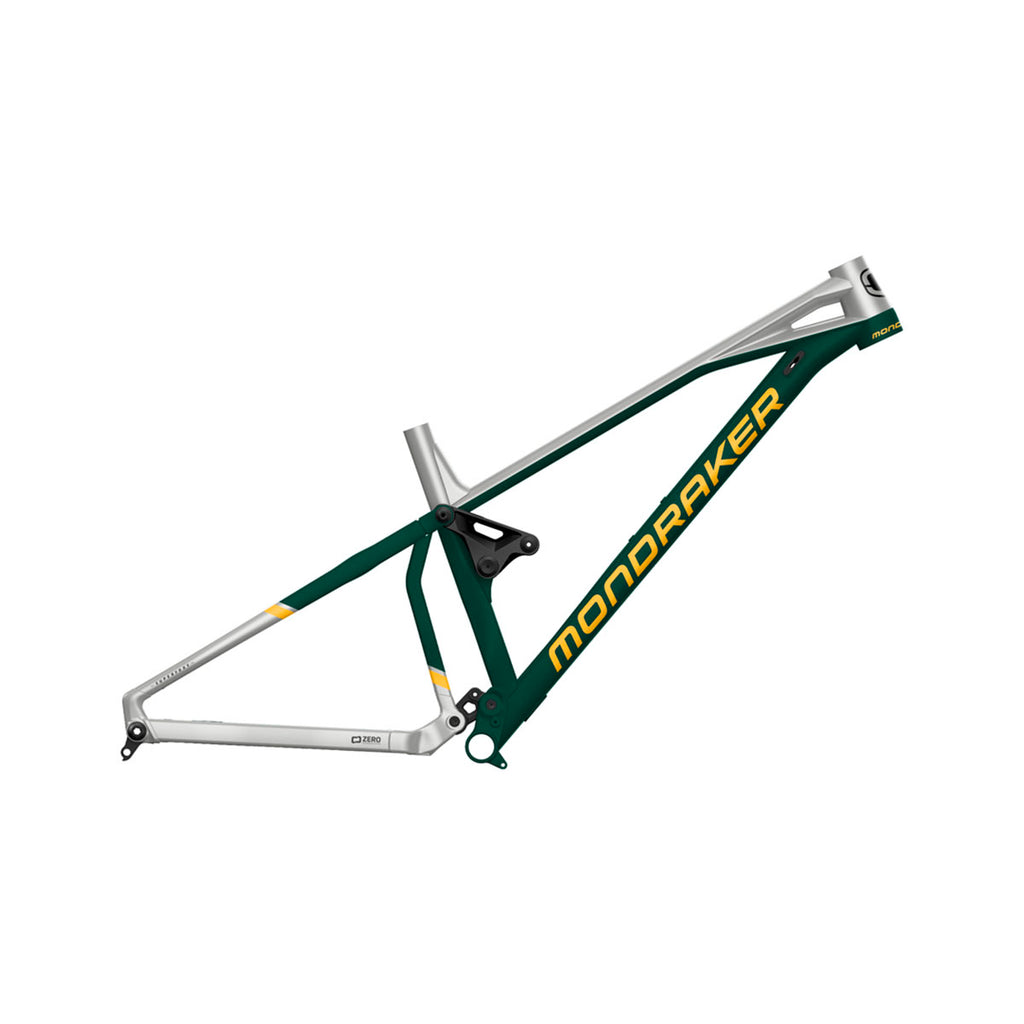

Mondraker - SUPERFOXY R Frame Kit - Gloss British Racing Green / Racing Silver / Yellow (SUPER ENDURO)
Mondraker - SUPERFOXY R Frame Kit - Gloss British Racing Green / Racing Silver / Yellow (SUPER ENDURO) - S / Green-Silver-Yellow | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Frame Kit for Mondraker Superfoxy R Bike 2023
NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Colors: Gloss British Racing Green / Racing Silver / Yellow
ZERO SUSPENSION: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
FORWARD GEOMETRY: Heavy enduro riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
STEALTH ALLOY: The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05 |
|
SIZES |
S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
|
REAR SHOCK |
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings |
|
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45° |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
380 mm |
420 mm |
470 mm |
510 mm |
|
B |
Top Tube Length |
605 mm |
625 mm |
650 mm |
670 mm |
|
C |
Bottom Bracket Drop |
-20 mm |
-20 mm |
-20 mm |
-20 |
|
D |
Bottom Bracket Height |
350 mm |
350 mm |
350 mm |
350 mm |
|
E |
Chainstay Length |
445 mm |
445 mm |
445 mm |
445 mm |
|
F |
Seat Tube Angle, Actual |
71° |
71° |
71° |
71° |
|
G |
Seat Tube Angle, Effective |
76° |
76° |
76° |
76° |
|
H |
Head Tube Angle |
65° |
65° |
65° |
65° |
|
I |
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
J |
Wheelbase |
1224 mm |
1245 mm |
1273 mm |
1293 mm |
|
K |
Head Tube Length |
100 mm |
110 mm |
130 mm |
130 mm |
|
L |
Reach |
450 mm |
470 mm |
490 mm |
510 mm |
|
M |
Stack |
621 mm |
621 mm |
639 mm |
639 mm |
BIKE SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
