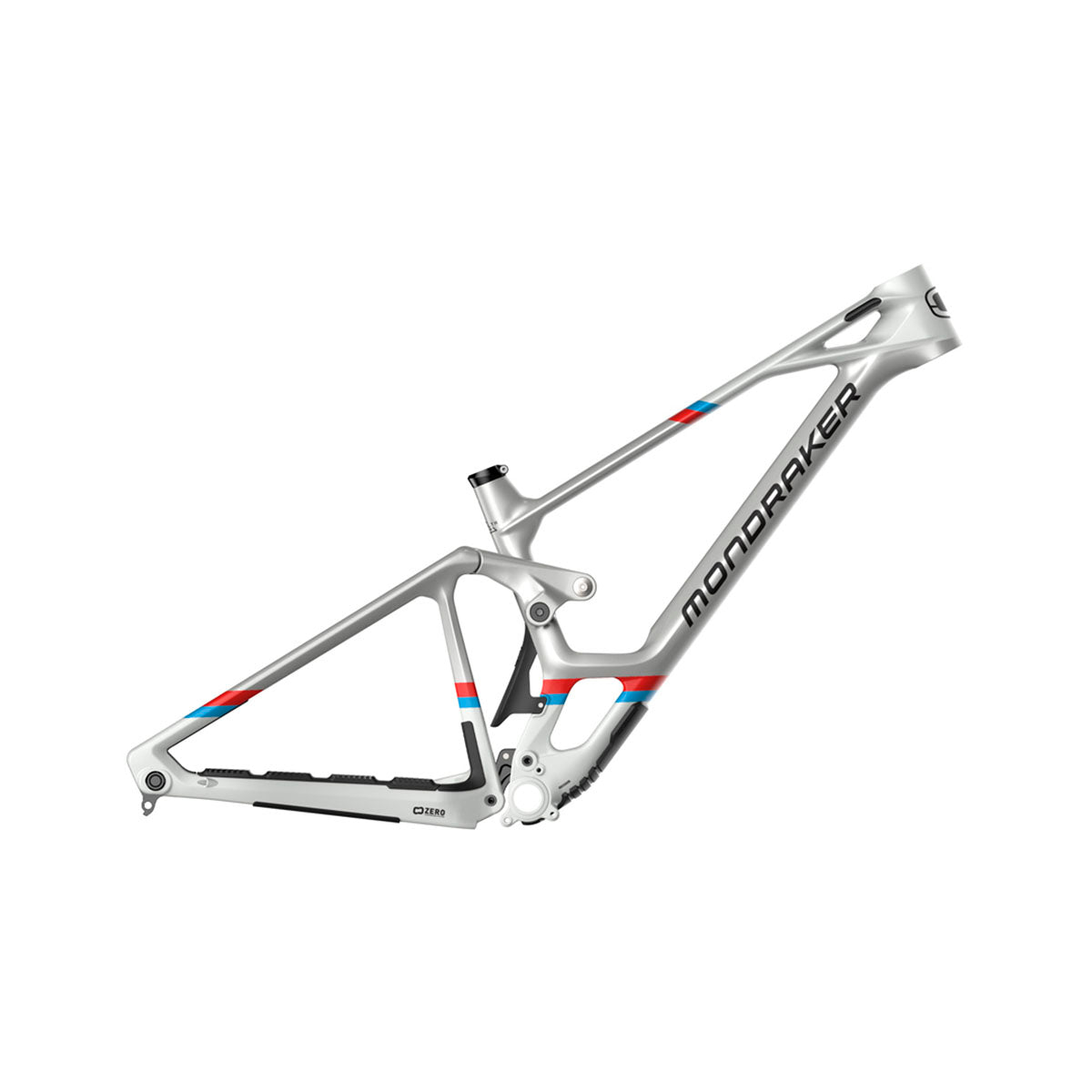

Mondraker - SUMMUM CARBON RR Frame Kit - Silver/White (DOWNHILL)
Mondraker - SUMMUM CARBON RR Frame Kit - Silver/White (DOWNHILL) - S / Silver-White | NOTE: This item will be special ordered for you. Kindly allow 2 to 6 weeks of lead time.
Frame kit for Mondraker Summum Carbon RR 2023 Bike
NOTE:
Pre-orders only. Subject approval to availability and delivery times.
Please call us for availability and all other information at 805-850-3200.
DESCRIPTION
Sizes: S: 400mm / M: 400mm / L: 400mm / XL: 400mm
Colors: Gloss Racing Silver / Dirty White
ZERO SUSPENSION: Mondraker’s unique zero suspension system helps with stability and control by absorbing the strongest vibrations and keeping your wheels planted on the ground even on the bumpiest of the trails. This superior suspension design offers zero power loss for pedaling stability, zero pedal kickback for minimum chain growth throughout travel, zero brake jack for isolated braking & suspension forces, and zero bumps for absorbing even the slightest bumps for extreme rear wheel stability.
FORWARD GEOMETRY: Downhill riders will love the safety and confidence offered by Mondraker’s proprietary forward geometry design. Forward geometry also helps with improved handling, overall control, uphill precision, and stability in tough terrains.
STEALTH CARBON AIR: The compact and lighter stealth carbon frame and HHG internal cable routing help with resistance and mobility for better speed and performance. Mondraker’s proprietary Stealth carbon construction uses specific positioning and direction of carbon fibers to optimize benefits such as strength, structural rigidity, trail buzz absorption, and lightness, in addition to consistency, reliability, and visual appeal.
SPECS
COMPONENTS / TECHNICAL SPECIFICATIONS
|
FRAME |
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual raw Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included (EU Only) |
|
SIZES |
S: 400mm / M: 400mm / L: 400mm / XL: 400mm |
|
REAR SHOCK |
Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings |
|
SHOCK SETTINGS |
ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L/XL size 500 lbs |
GEOMETRY
MEASUREMENTS / GEOMETRY (Click on image to expand)
|
Size |
S |
M |
L |
XL |
|
|
A |
Seat Tube Length |
400 mm |
400 mm |
400 mm |
400 mm |
|
B |
Top Tube Length |
575 mm |
595 mm |
620 mm |
645 mm |
|
C |
Bottom Bracket Drop |
-20mm |
-20mm |
-20mm |
-20mm |
|
D |
Bottom Bracket Height |
350 mm |
350 mm |
350 mm |
350 mm |
|
E |
Chainstay Length |
450/455/460 mm |
450/455/460 mm |
450/455/460 mm |
450/455/460 mm |
|
F |
Seat Tube Angle, Actual |
69° |
69° |
69° |
69° |
|
G |
Seat Tube Angle, Effective |
77° |
77° |
77° |
77° |
|
H |
Head Tube Angle |
63° |
63.5° |
63.5° |
63.5° |
|
I |
Fork Offset |
58 mm |
58 mm |
58 mm |
58 mm |
|
J |
Wheelbase |
1260 mm |
1270 mm |
1295 mm |
1320 mm |
|
K |
Head Tube Length |
110 mm |
110 mm |
112 mm |
112 mm |
|
L |
Reach |
430 mm |
450 mm |
475 mm |
500 mm |
|
M |
Stack |
632 mm |
633 mm |
632 mm |
632 mm |
BIKE SIZE GUIDE
Bike Size Guide (Click on image to zoom in)
